Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the passenger lower crash pad. See CRASH PAD .
  3. Remove the receiver (B) from the passenger lower crash pad (A).

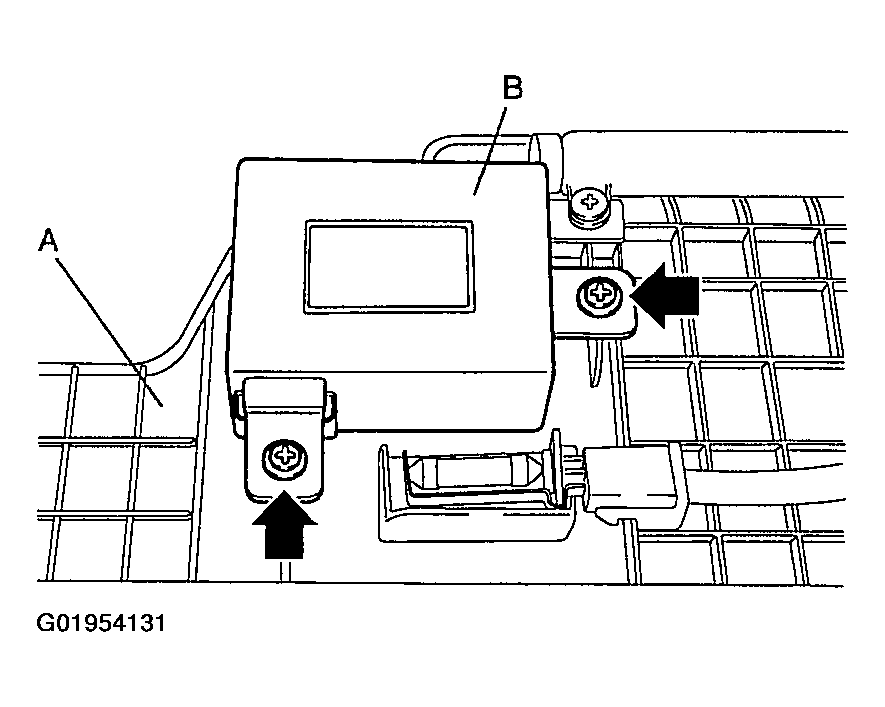

    Fig 1: Removing The Receiver
    G01954131Courtesy of KIA MOTORS AMERICA, INC.
