Connecting Rod Bearing

1. Check the connecting rod big end bore size code.
   NOTE: Record the connecting rod big end bore size code letters on connecting rod cap as shown in illustration.

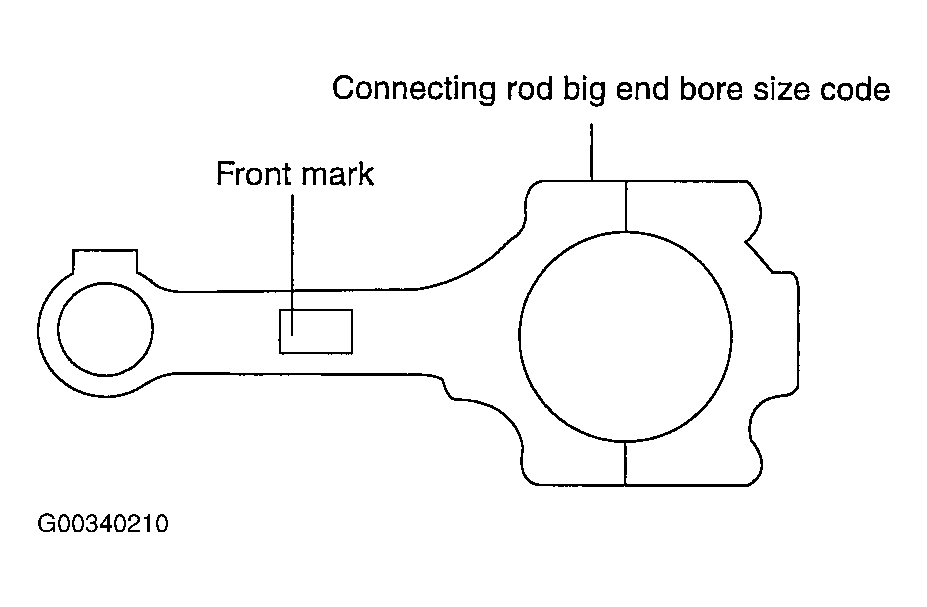

   Fig 1: Location Of Connecting Rod Big End Bore Size Code

   Courtesy of KIA MOTORS AMERICA, INC.

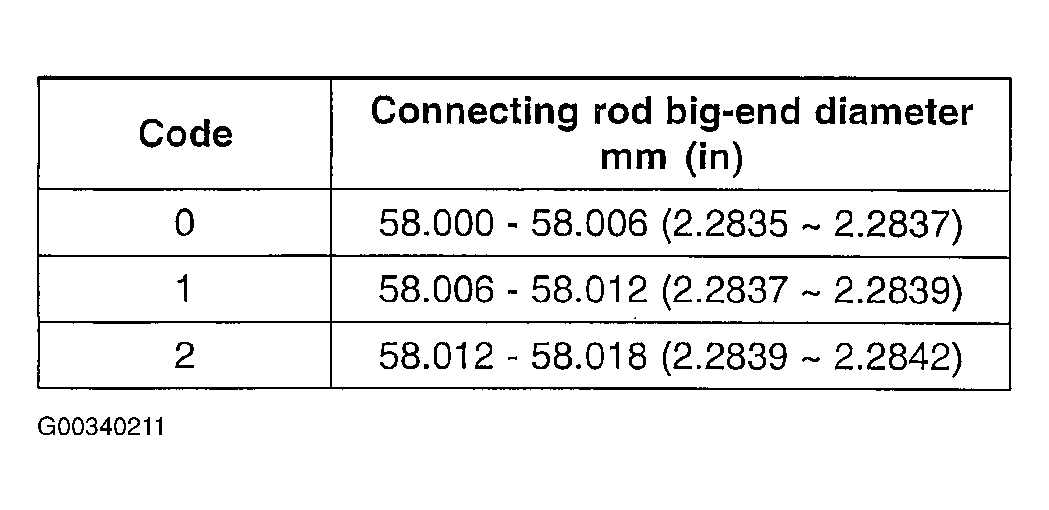

   Fig 2: Connecting Rod Big End Diameter Table

   Courtesy of KIA MOTORS AMERICA, INC.
2. Check the crankshaft pin journal size code.
   NOTE: Record the pin journal size code letters on the crankshaft balance weight.
   Reading order is from left to right as shown in illustration, with No. 1 pin journal size code shown first.

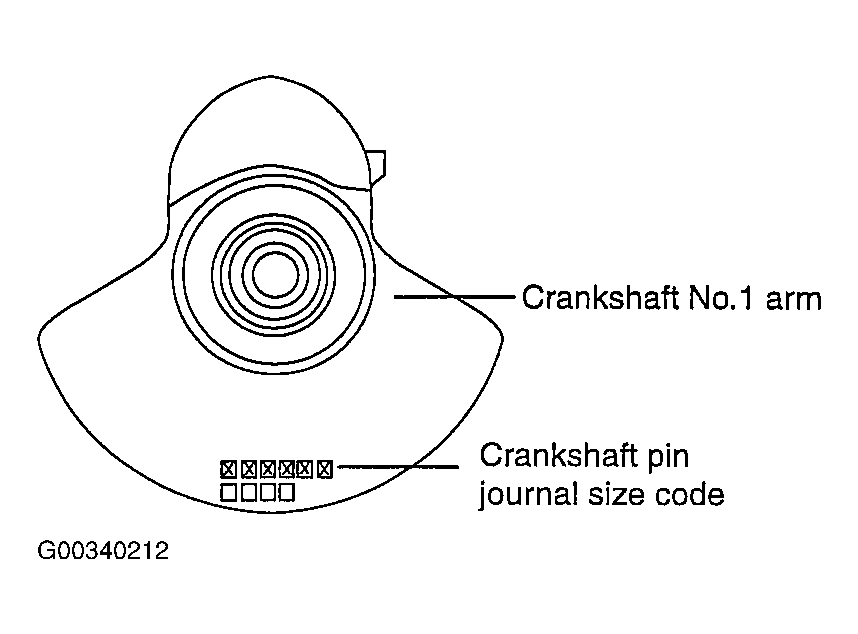

   Fig 3: Location Of Crankshaft Pin Journal Size Code

   Courtesy of KIA MOTORS AMERICA, INC.

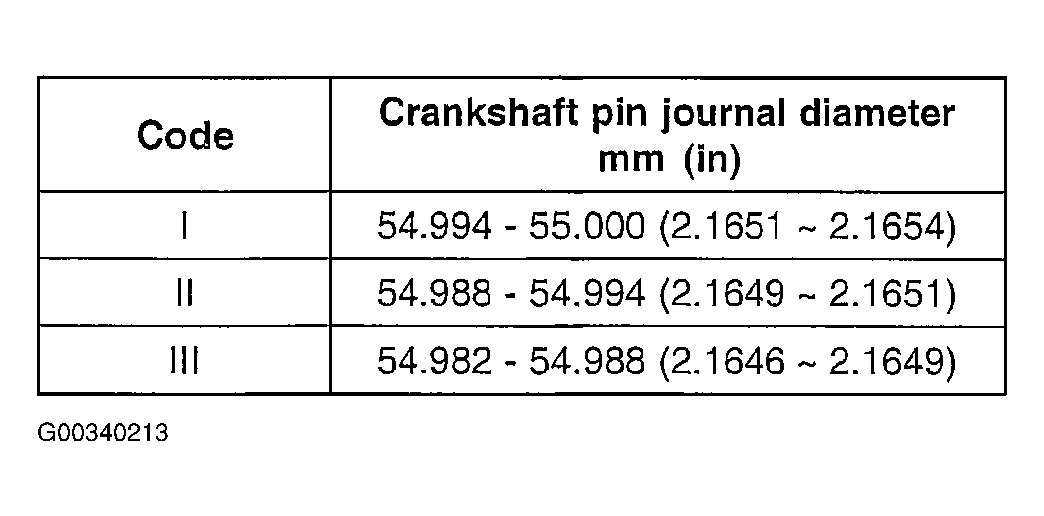

   Fig 4: Crankshaft Pin Journal Diameter Table

   Courtesy of KIA MOTORS AMERICA, INC.
3. Choose proper connecting rod bearing as shown in illustration.

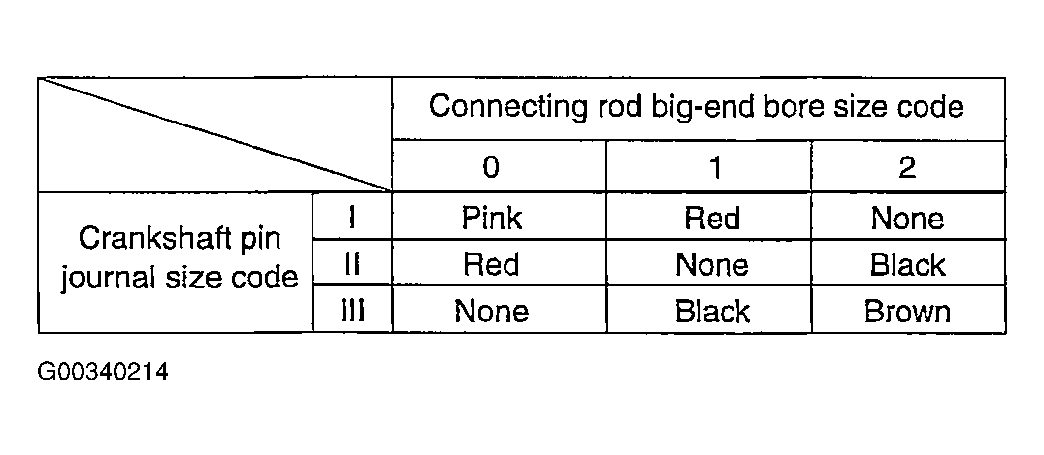

Fig 5: Connecting Rod Bearing Selection Table

Courtesy of KIA MOTORS AMERICA, INC.

Connecting rod bearing oil clearance:

0.026-0.044 mm (0.0010-0.0017 in)

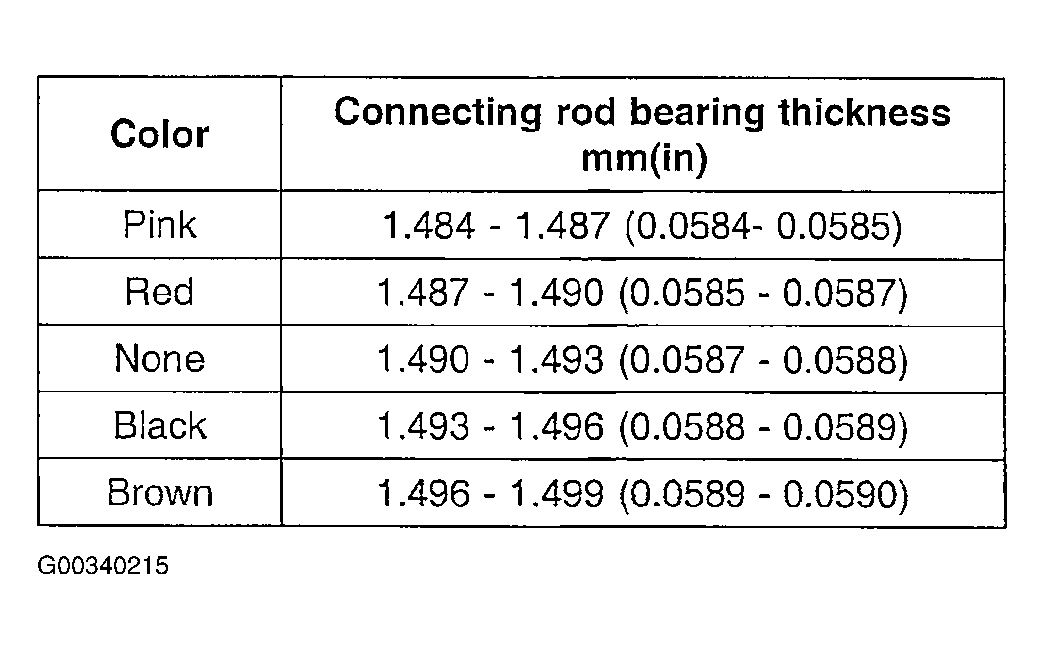

Fig 6: Connecting Rod Bearing Thickness Table (Reference Data)

Courtesy of KIA MOTORS AMERICA, INC.
