Repair Procedures: Installation

  1. Check that the flange of the thermostat is correctly placed in the socket of the thermostat housing.

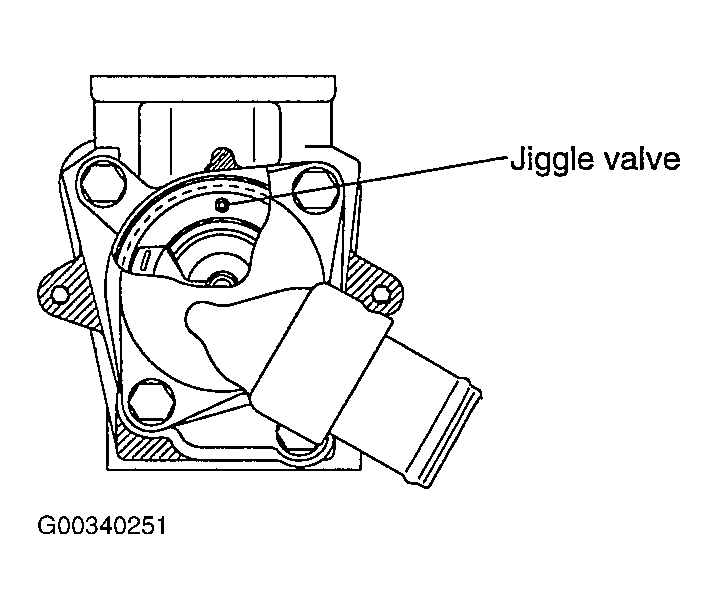

    Fig 1: Installation Position Of Thermostat
    G00340251Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the inlet fitting.

    Tightening torque

    Engine coolant inlet fitting bolt:

    17-20 N.m (170-200 kg. cm, 12-14 lb. ft)

  3. Refill the coolant.
