Front Wheel Speed Sensor: Inspection

Connect an ohmmeter between the wheel speed sensor terminals and measure the resistance.
Service standard
1. Front: 1600Ω +/- 10%
2. Rear: 1600Ω +/- 10%

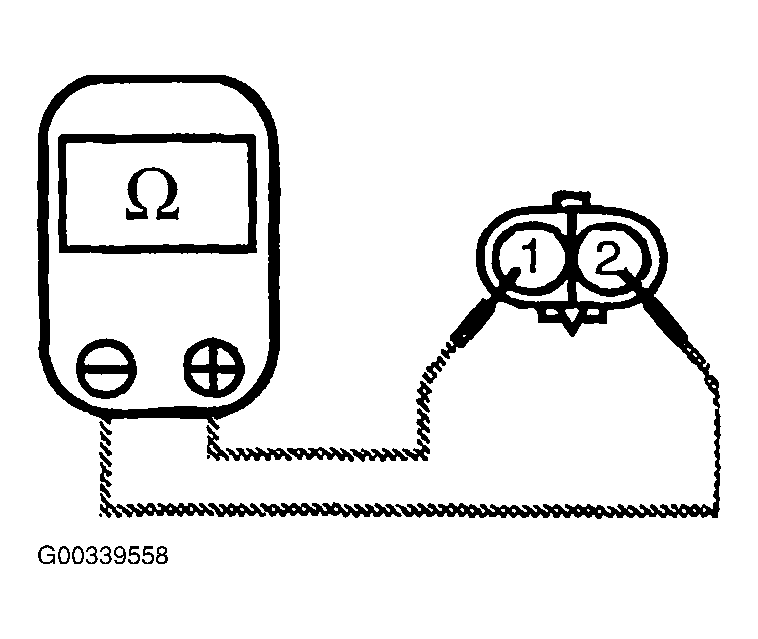

Fig 1: Connect An Ohmmeter Between The Wheel Speed Sensor Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Connect a voltmeter between the wheel speed sensor terminals and measure the voltage by turning the wheel.

NOTE: Set the voltmeter to measure AC voltage.
Service standard: AC voltage detected.

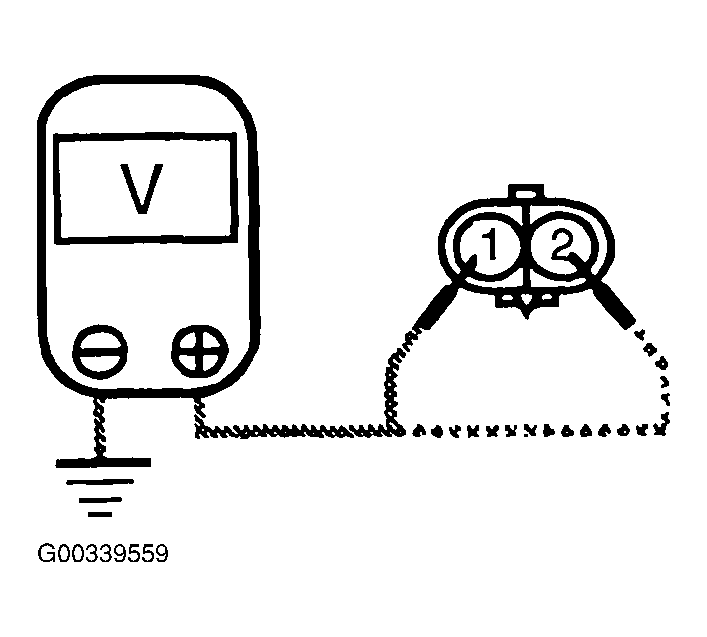

Fig 2: Connect A Voltmeter Between The Wheel Speed Sensor Terminals

Courtesy of KIA MOTORS AMERICA, INC.
