Limp Home (Override) Procedure By Ignition Key

This procedure allows the unlocking of the EMS by entering the user password via the IG SW, in case the transponder code cannot be read or is unknown after ignition-ON, a valid transponder code must have been received, otherwise the EMS will remain "Locked" and the lamp will start blinking. This can happen through a malfunction of the transponder, the reading device or an unknown transponder code.

The number of IG ON/OFF must coincide with the password.

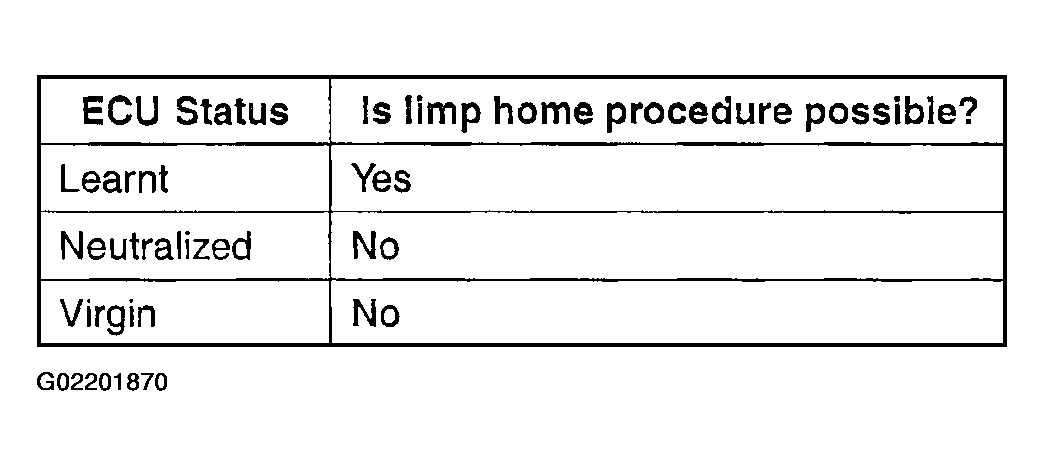

Fig 1: Identifying Limp Home Override Procedure Specifications

Courtesy of KIA MOTORS AMERICA, INC.

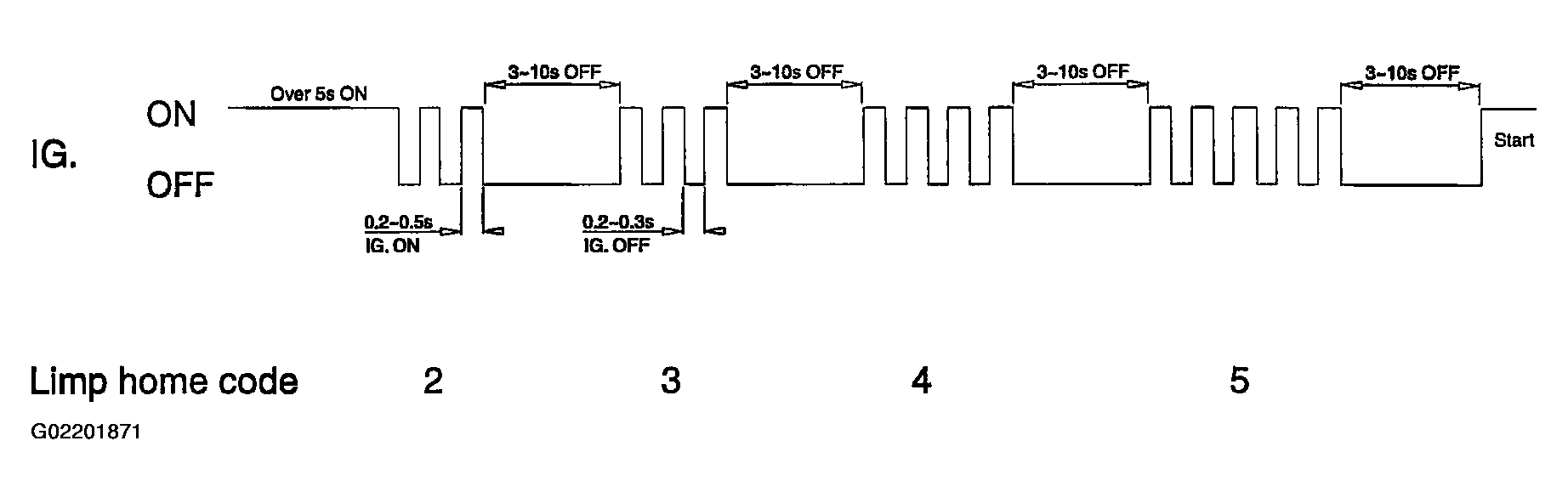

Fig 2: Identifying Limp Home Mode Code & Time Specification Chart

Courtesy of KIA MOTORS AMERICA, INC.

Only if the EMS is in status "learnt" and the user password status is "learnt" and the user password is the correct one, the EMS is unlocked for approximately 10 seconds. The engine can be started during this time. After elapsing of timer no engine start is possible. After new input of user password the time starts again.

After ignition off the EMS is locked. For next start the input of user password is requested again.
