Emission Controls Location

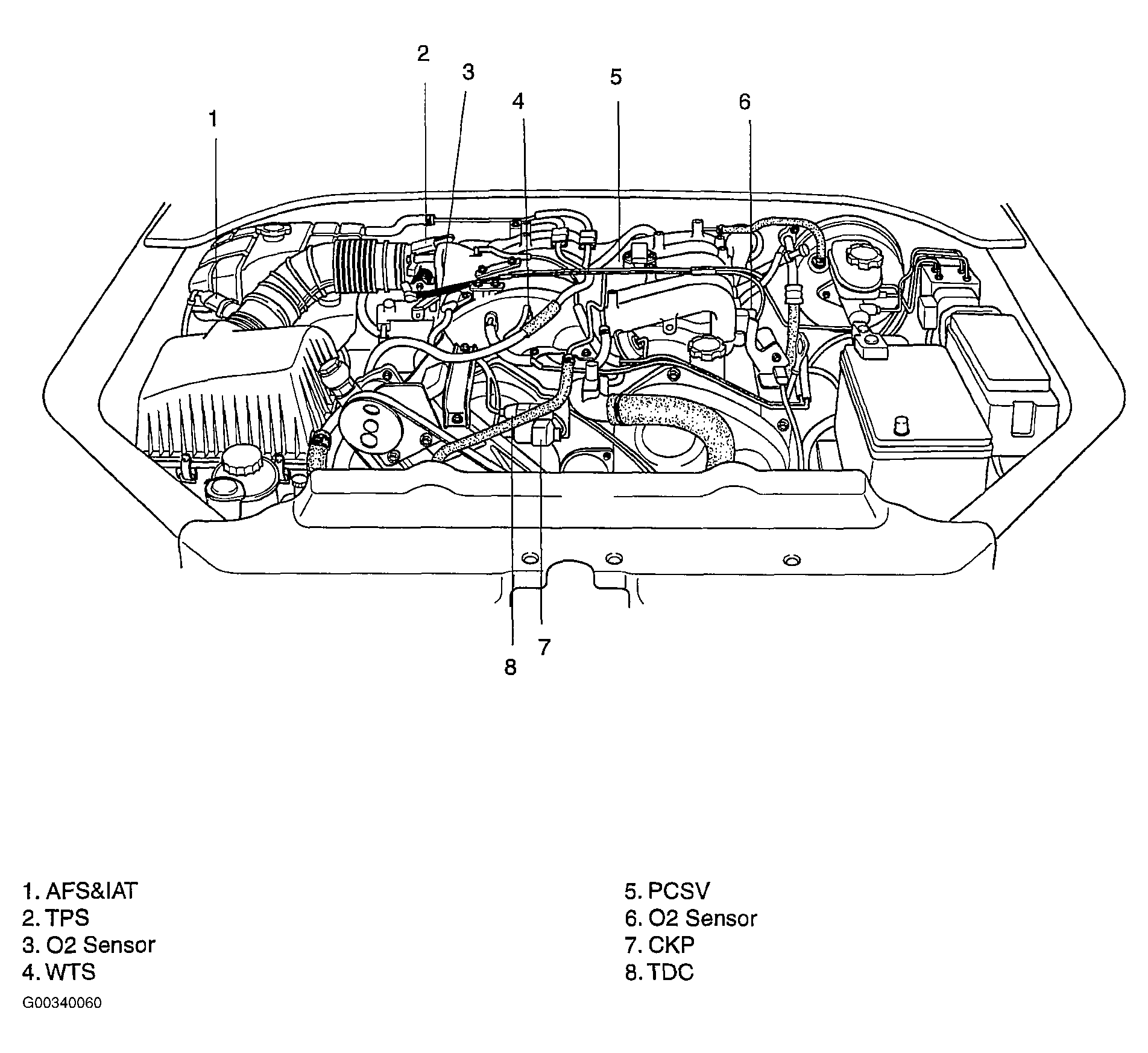

Fig 1: Identifying Location Of Emission System Components
G00340060Courtesy of KIA MOTORS AMERICA, INC.

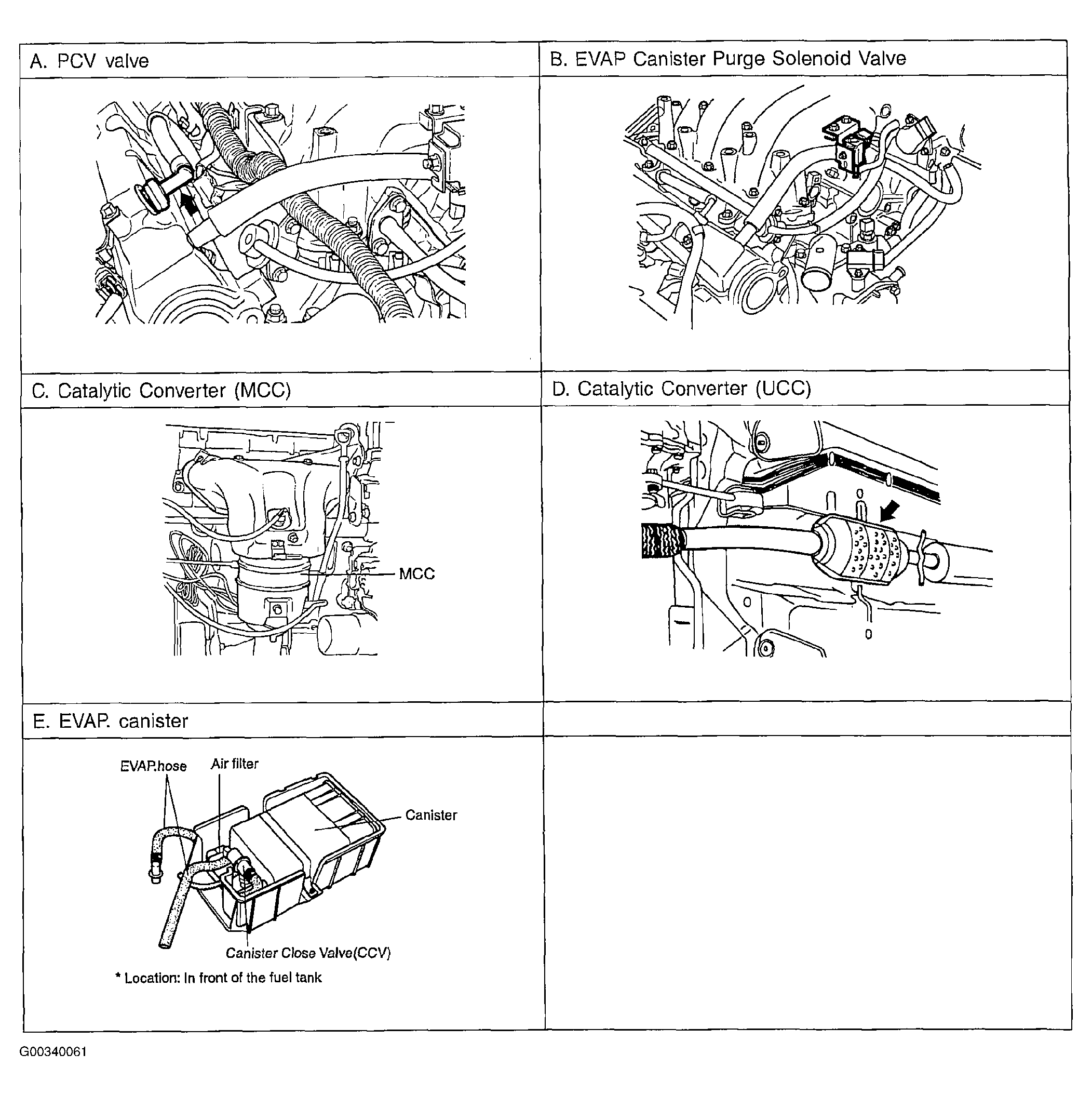

Fig 2: Detailed View Of Emission System Components
G00340061Courtesy of KIA MOTORS AMERICA, INC.
