Anti-Lock Braking System Control Module: Components

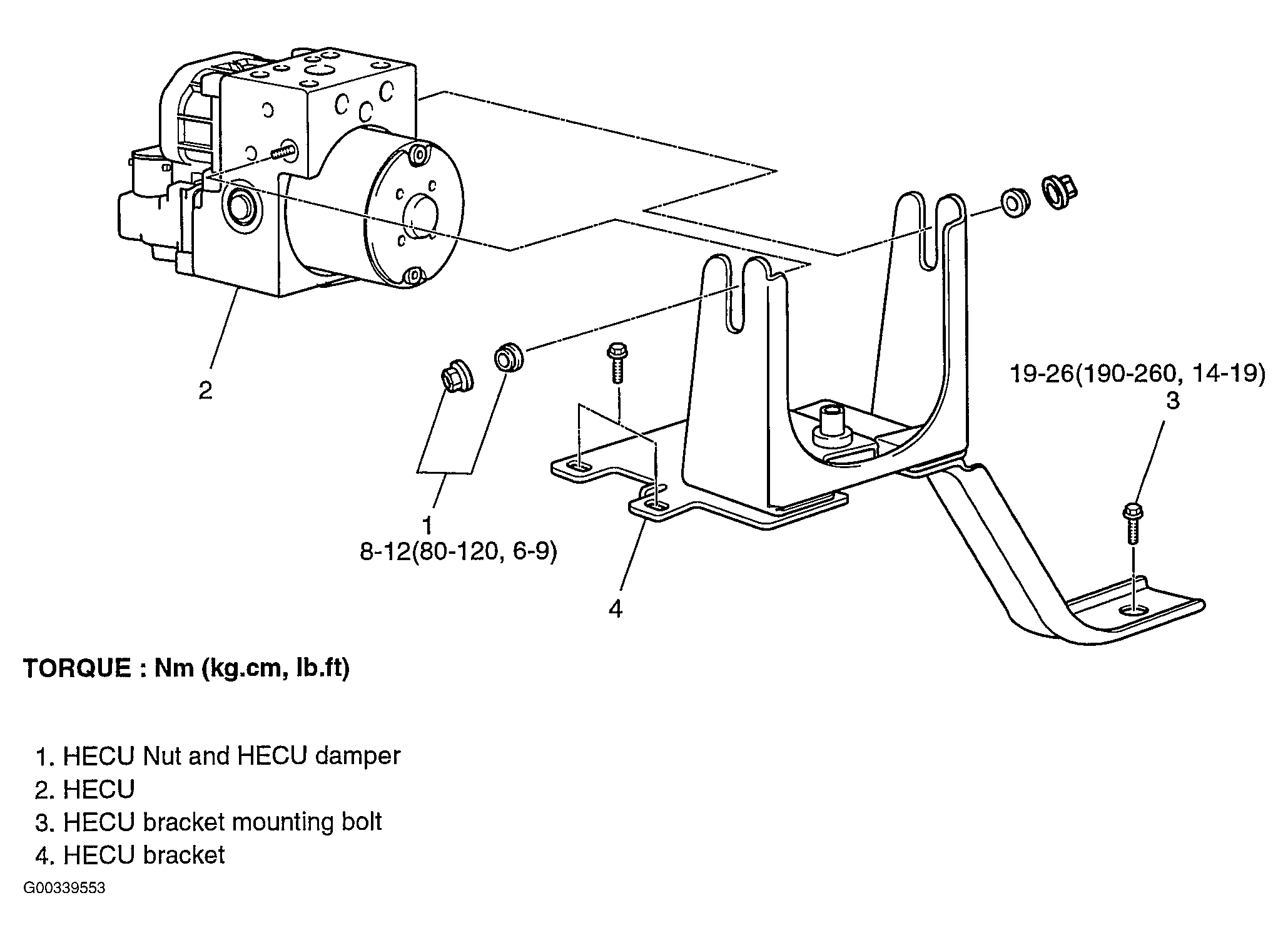

Fig 1: Anti-Lock Braking System Control Module Component Locations

G00339553

Courtesy of KIA MOTORS AMERICA, INC.
