Valve Body Fluid Pressure Circuit Diagrams: Notes

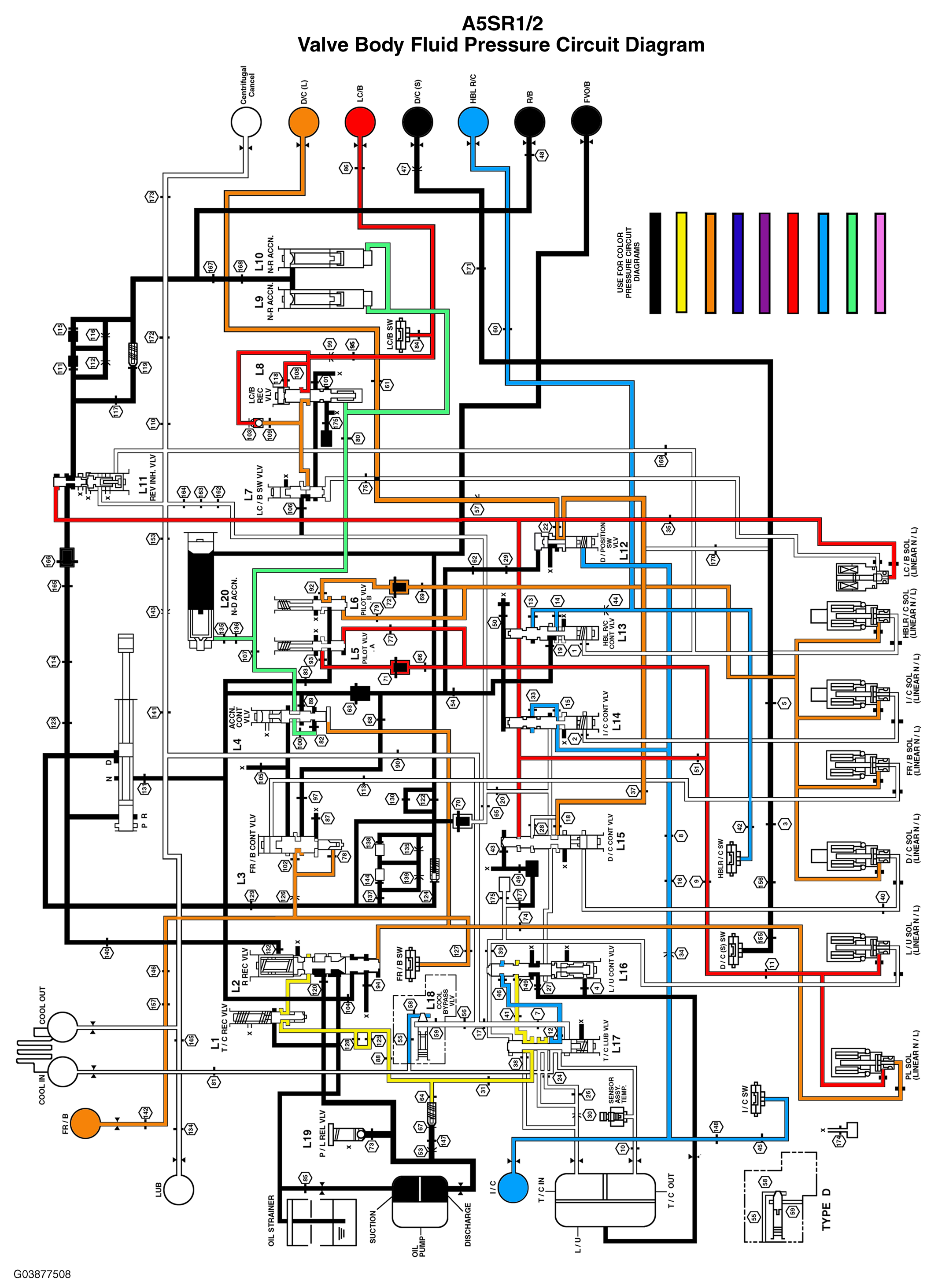

Fig 1: Valve Body Fluid Pressure Circuit Diagram - D Range

G03877508

Courtesy of KIA MOTORS AMERICA, INC.
