Circuit Diagram

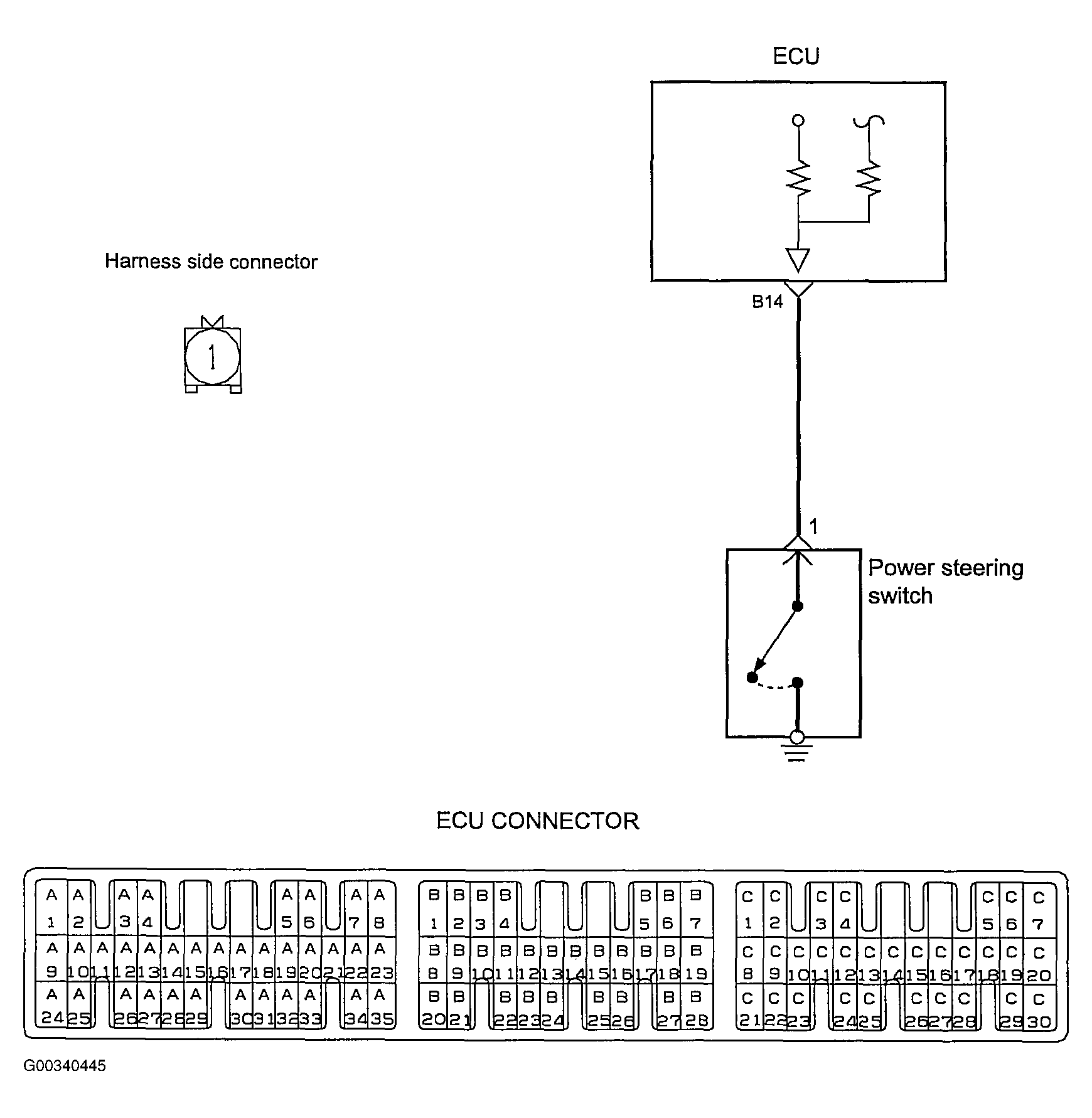

Fig 1: Identifying Power Steering Pressure Switch Circuit Diagram
G00340445Courtesy of KIA MOTORS AMERICA, INC.
