Engine Control Module & Ignition Failure Sensor Connector Locations

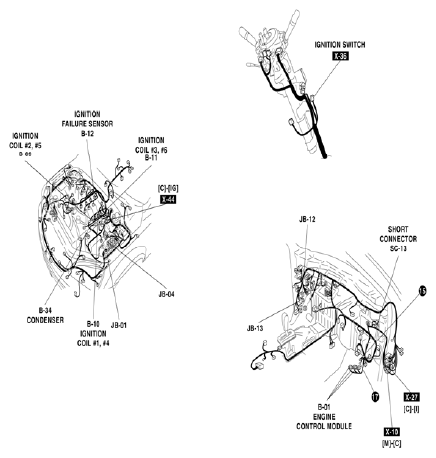

Fig 1: Engine Control Module & Ignition Failure Sensor Connector Locations

G07347662

Courtesy of KIA MOTORS AMERICA, INC.
