Audio Remote Control: Inspection

  1. Connect an ohmmeter to the 1 and 3 terminal of remote control connector.
    Fig 1: Checking Remote Control Connector Resistance
    G02201733Courtesy of KIA MOTORS AMERICA, INC.
  2. Check the resistance between 1 and 3 terminal when each switch is operated.

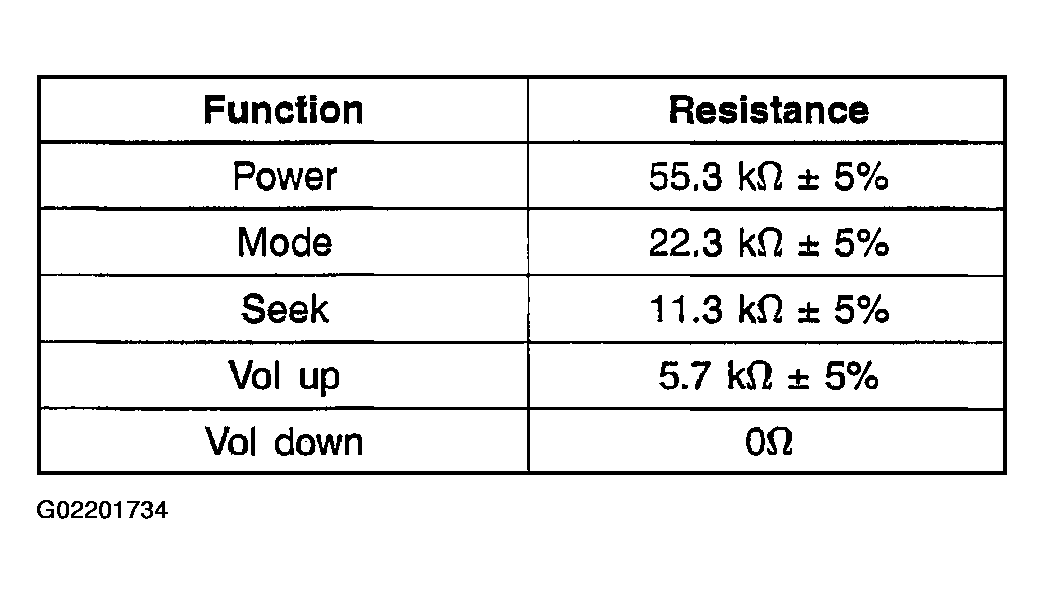

    Fig 2: Identifying Remote Control Resistance Values
    G02201734Courtesy of KIA MOTORS AMERICA, INC.

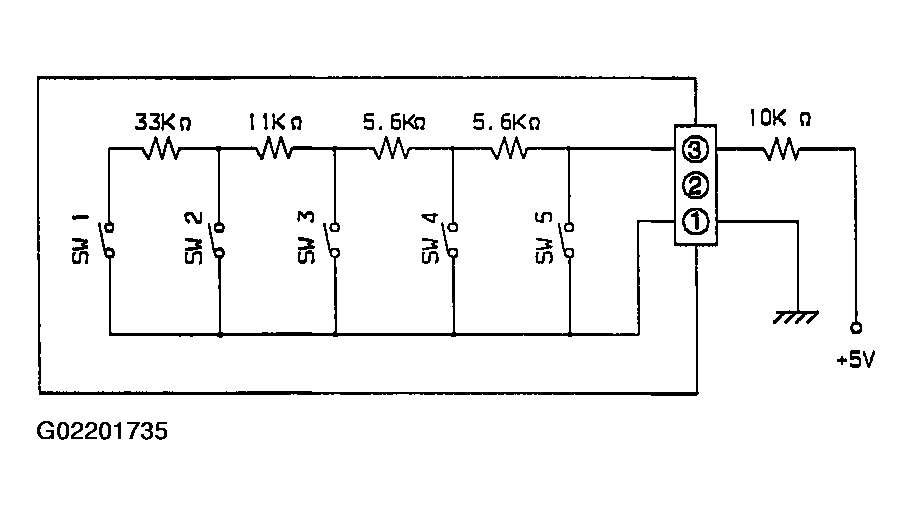

    Fig 3: Identifying Remote Control Circuit Diagram
    G02201735Courtesy of KIA MOTORS AMERICA, INC.
