Power Steering Gear Box: Disassembly

  1. Mark alignment of tie rod, jam nut, and tie rod end as shown.

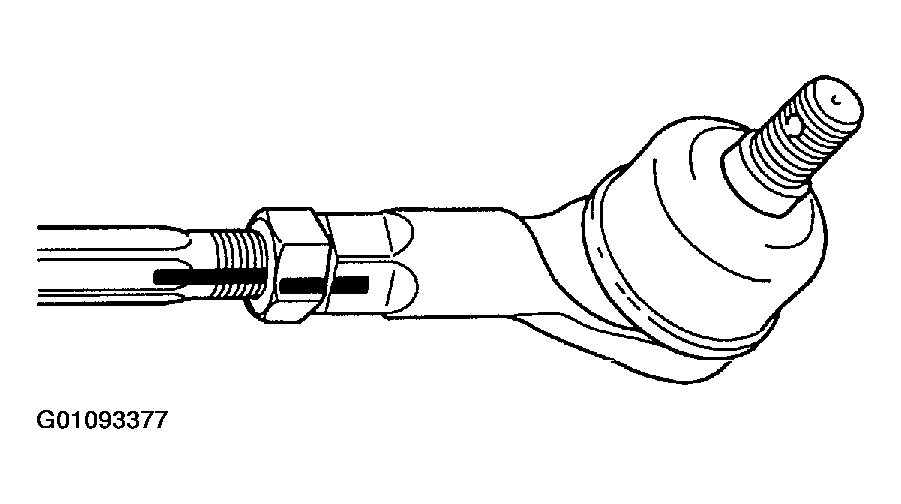

    Fig 1: Marking Alignment Of Tie Rod, Jam Nut, & Tie Rod End
    G01093377Courtesy of KIA MOTORS AMERICA, INC.
  2. Loosen tie rod jam nut, and then remove tie rod.
