ECM Connector & Terminal Information
>>
Connector B-01 (A)
Connector B-01 (A)

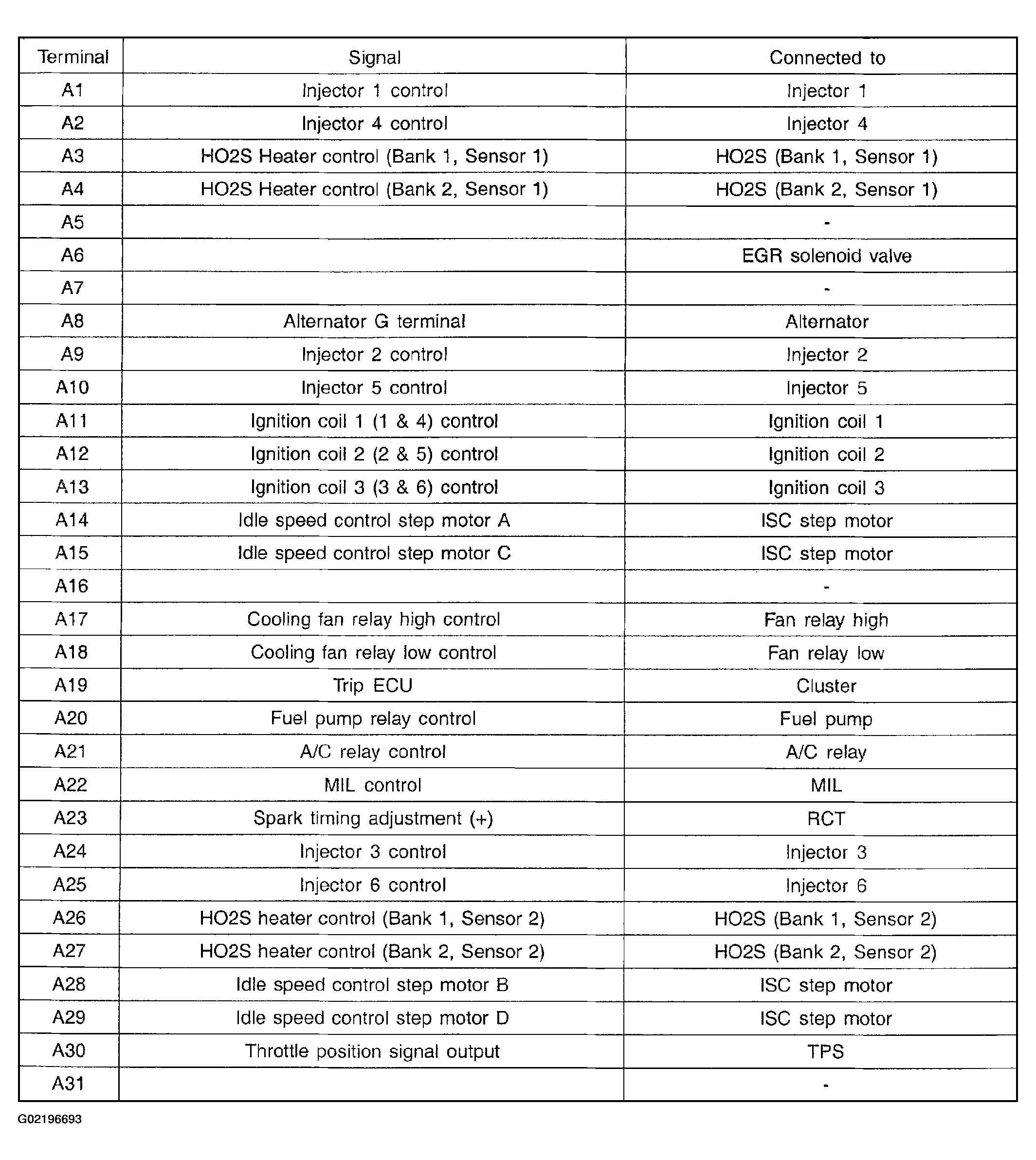

Fig 1: Connector B-01 (A) (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

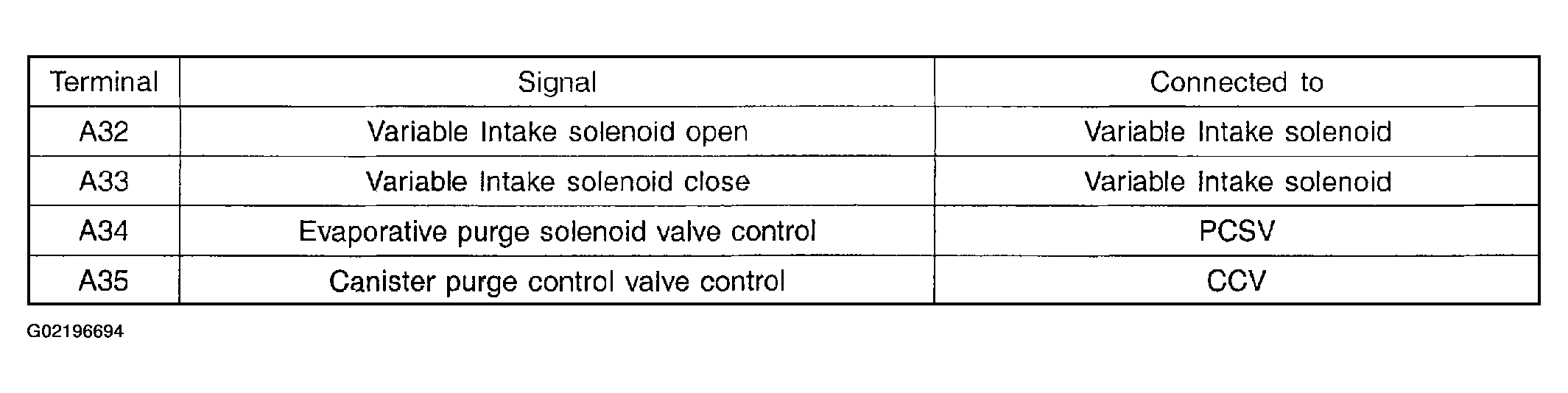

Fig 2: Connector B-01 (A) (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
