Intake Manifold: Inspection

1. Surge tank
   1. Inspect the surge tank for damage and crack, if necessary, replace it.
   2. Check if cooling water passage is blocked.
   3. Inspect the mating surface for warpage using a straight edge or filler gauge.

Standard value: 0.15 mm (0.006 in.)

Service limit: 0.2 mm (0.008 in.)

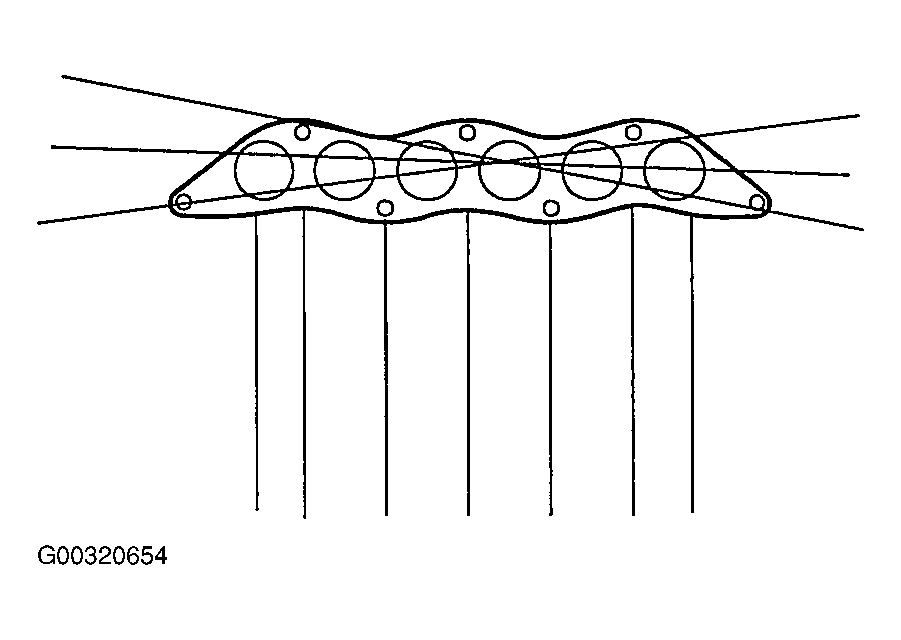

Fig 1: Inspecting Mating Surface For Warpage With Using A Straight Edge Or Filler Gauge

Courtesy of KIA MOTORS AMERICA, INC.
