Ignition Failure Sensor Connector End View & Location

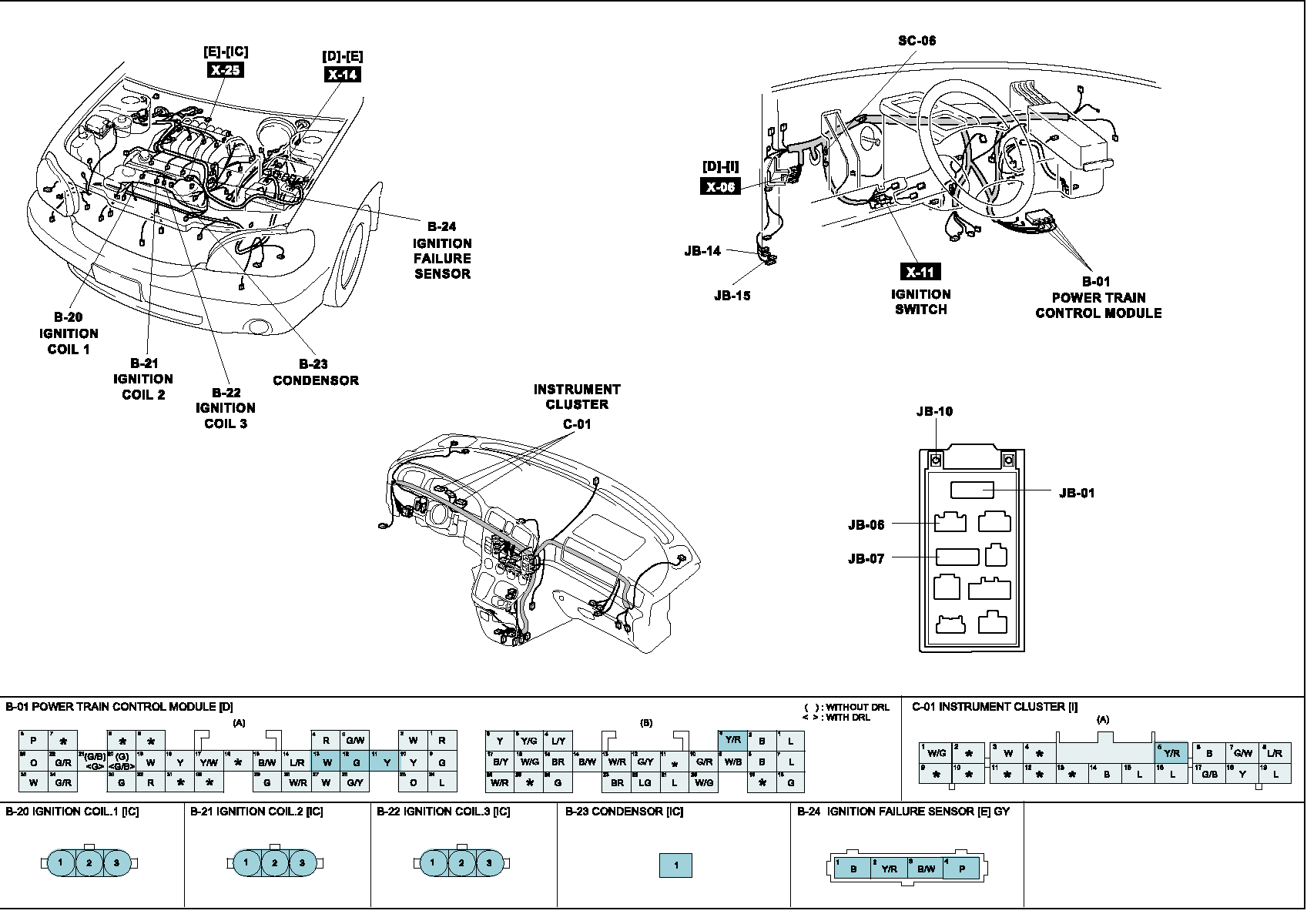

Fig 1: Ignition Failure Sensor Connector End View & Location

G07347023

Courtesy of KIA MOTORS AMERICA, INC.
