Power Lumbar Switch: Inspection

Operate the power lumbar switch and check the continuity between terminals. If continuity is not as specified, replace the switch.

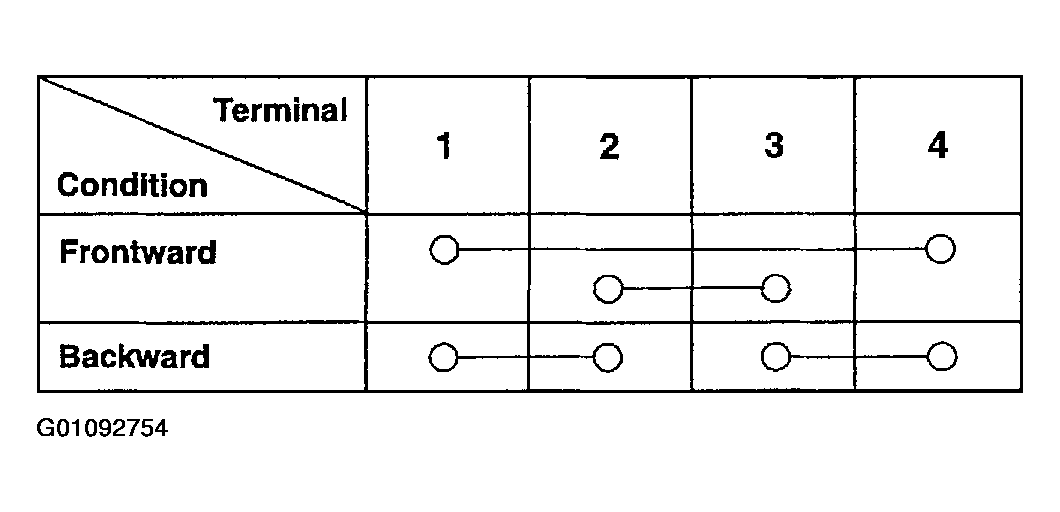

Fig 1: Checking Power Lumbar Switch Operation

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Power Lumbar Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
