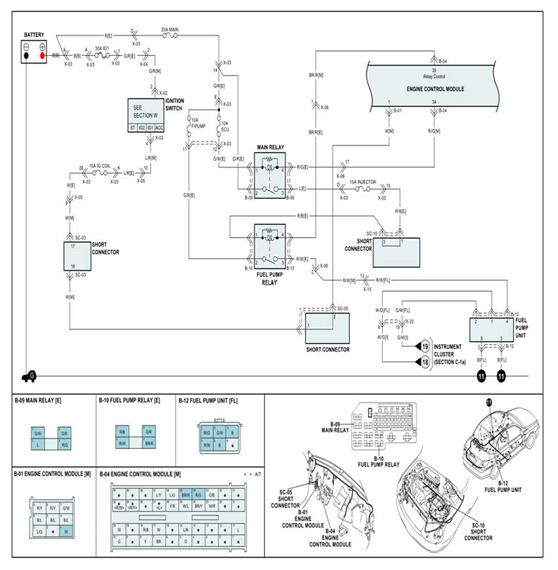

Home >> Kia >> 2005 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures >> DTC Troubleshooting >> DTC P0605: Internal Control Module Read Only Memory (ROM) Error >> Inspection/Repair >> Schematic Diagram
