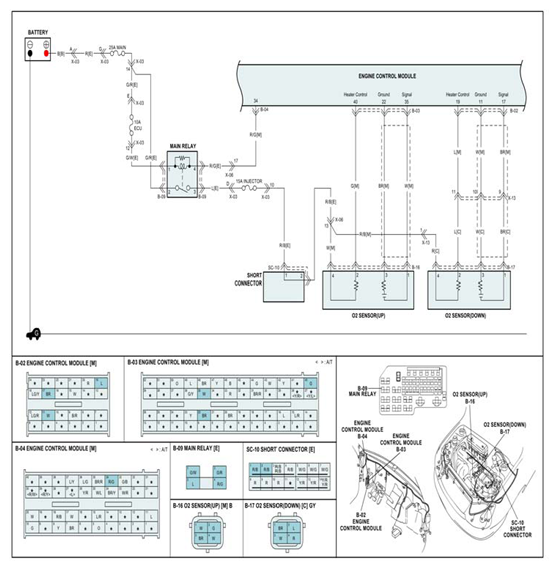

Home >> Kia >> 2005 >> Rio Base, Standard >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures >> DTC Troubleshooting >> DTC P0132: Ho2S Circuit High Input (Bank 1, Sensor 1) >> General Information >> Schematic Diagram
