General Information: Specification

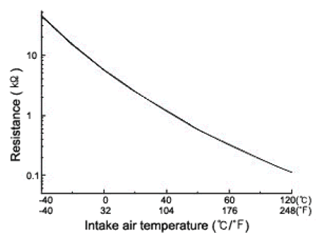

Fig 1: Intake Air Temperature And Resistance Graph

G07339347

RESISTANCE REFERENCE CHART

Temp. (°C)	Temp. (°F)	Resistance (kΩ)
-20	-4	13.24~16.83
20	68	2.27~2.64
80	176	0.207~0.429
