Engine Running Rough On Deceleration And Backfire

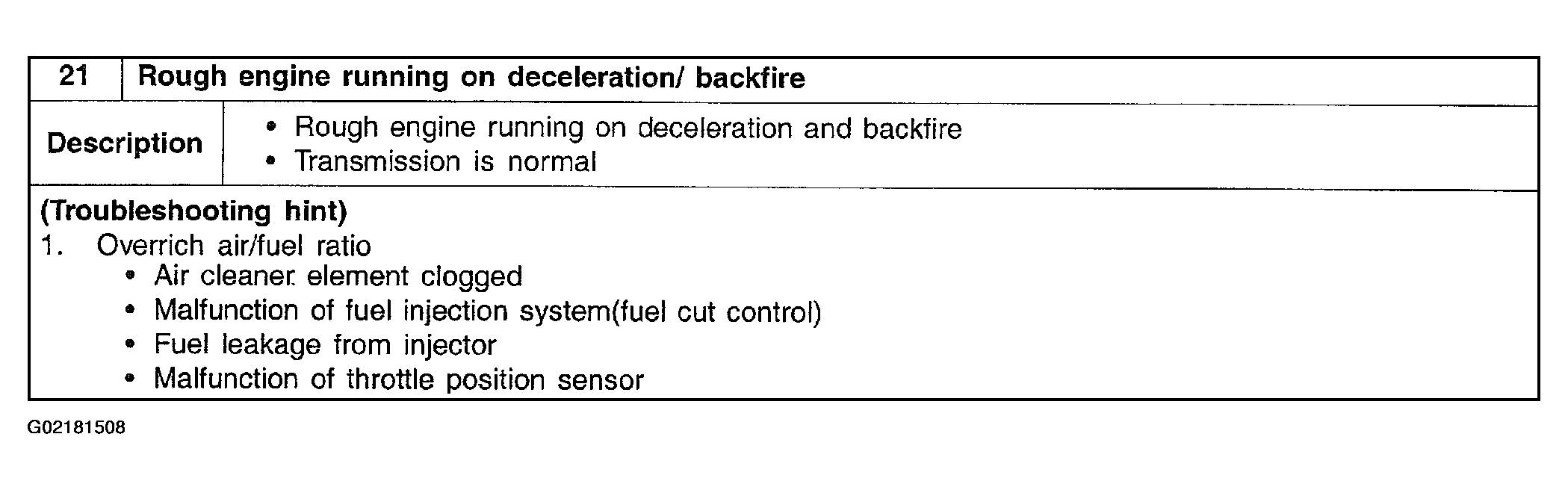

Fig 1: Description

G02181508

Courtesy of KIA MOTORS AMERICA, INC.

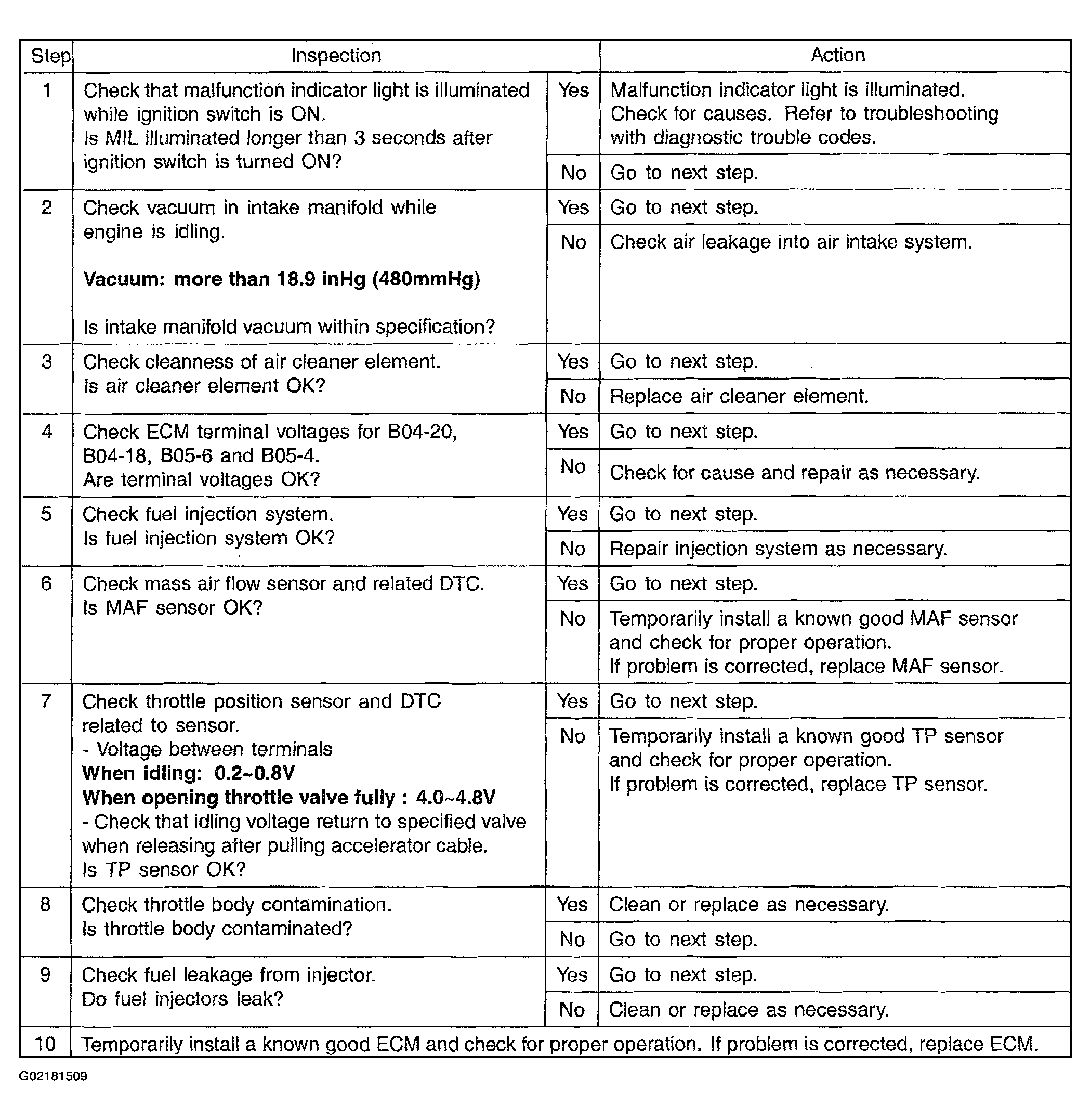

Fig 2: Inspection/Action Chart

G02181509

Courtesy of KIA MOTORS AMERICA, INC.
