Component Inspection

  1. Ignition "OFF".
  2. Disconnect CCV connector.
  3. Measure resistance between terminals 1 and 2 of the CCV connector (Component side).
    1. Specification: Approx. 23~26Ω at 20°C (68°F)

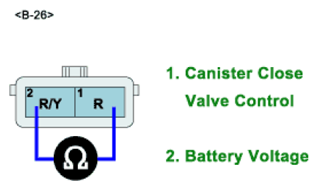

      Fig 1: Measuring Resistance Between Terminals 1 And 2 Of CCV Connector (Component Side)
      G07339691
  4. Is CCV resistance display within specifications?

    YES

    1. Go to "W/HARNESS INSPECTION " procedure.

    NO

    1. Test with a new CCV and check for proper operation. If problem is corrected, replace CCV and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
