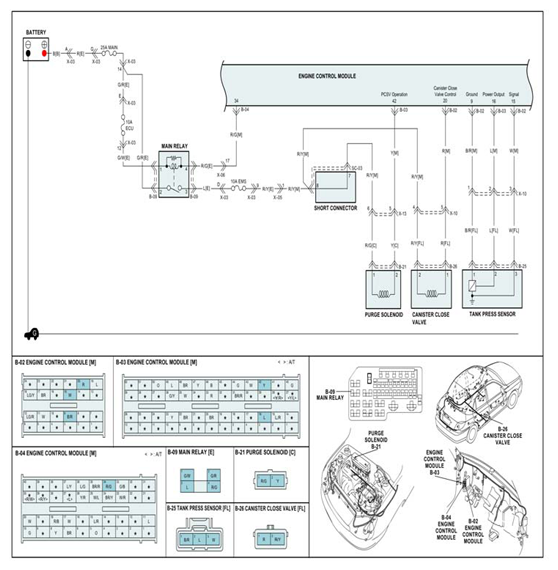

Home >> Kia >> 2005 >> Rio Base, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures >> DTC Troubleshooting >> DTC P0447: EVAP. Emission System - Vent Control Circuit Open >> General Information >> Schematic Diagram
