Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect HO2S connector.
  3. Ignition "ON".
  4. Measure voltage between terminal 1 of the sensor harness connector and chassis ground.
    1. Specification: Approx. 0V

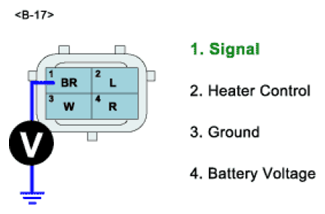

      Fig 1: Measuring Voltage Between Terminal 1 Of Sensor Harness Connector And Chassis Ground
      G07339514
  5. Is voltage within the specification?

    YES

    1. Go to "COMPONENT INSPECTION " procedure.

    NO

    1. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
