Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.7L
>>
MFI Control System
>>
Water Temperature Sensor (WTS)
>>
Harness Inspection Procedures (WTS)
Harness Inspection Procedures (WTS)

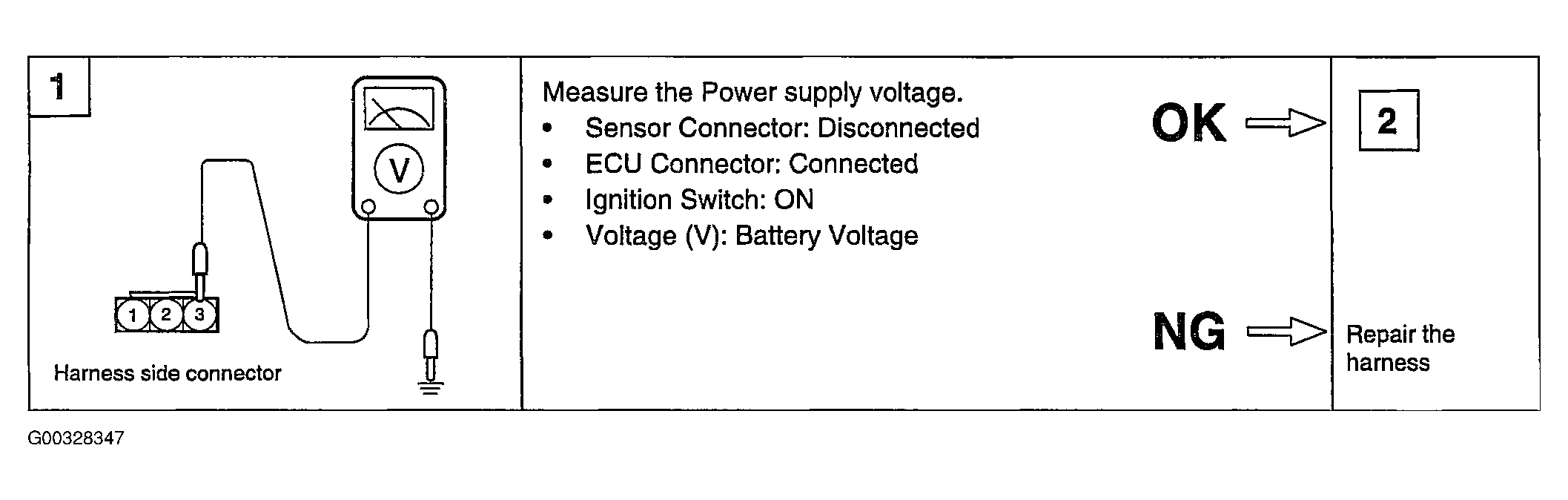

Fig 1: Checking Water Temperature Sensor (WTS) Harness (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

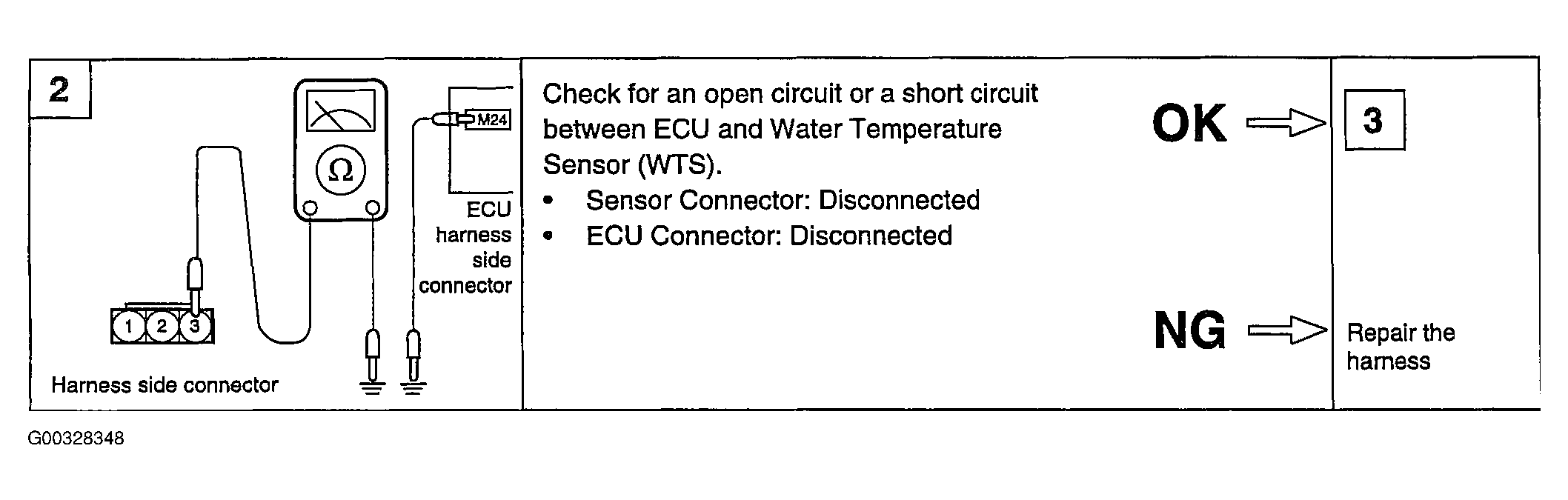

Fig 2: Checking Water Temperature Sensor (WTS) Harness (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

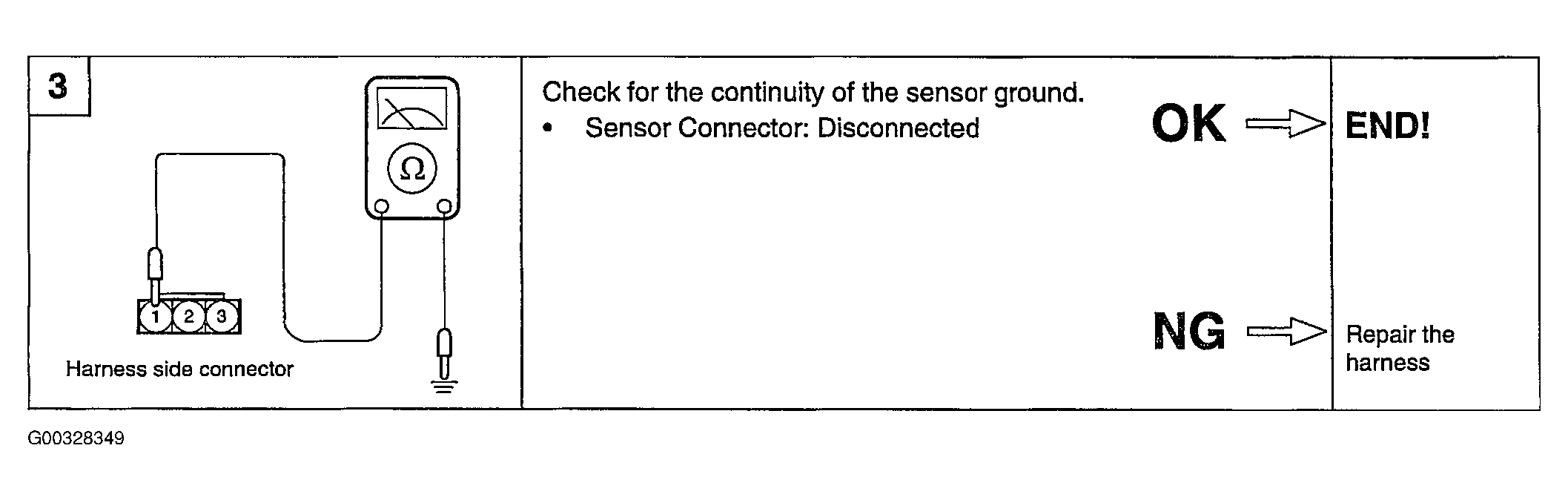

Fig 3: Checking Water Temperature Sensor (WTS) Harness (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
