Harness Inspection Procedures (PCSV)

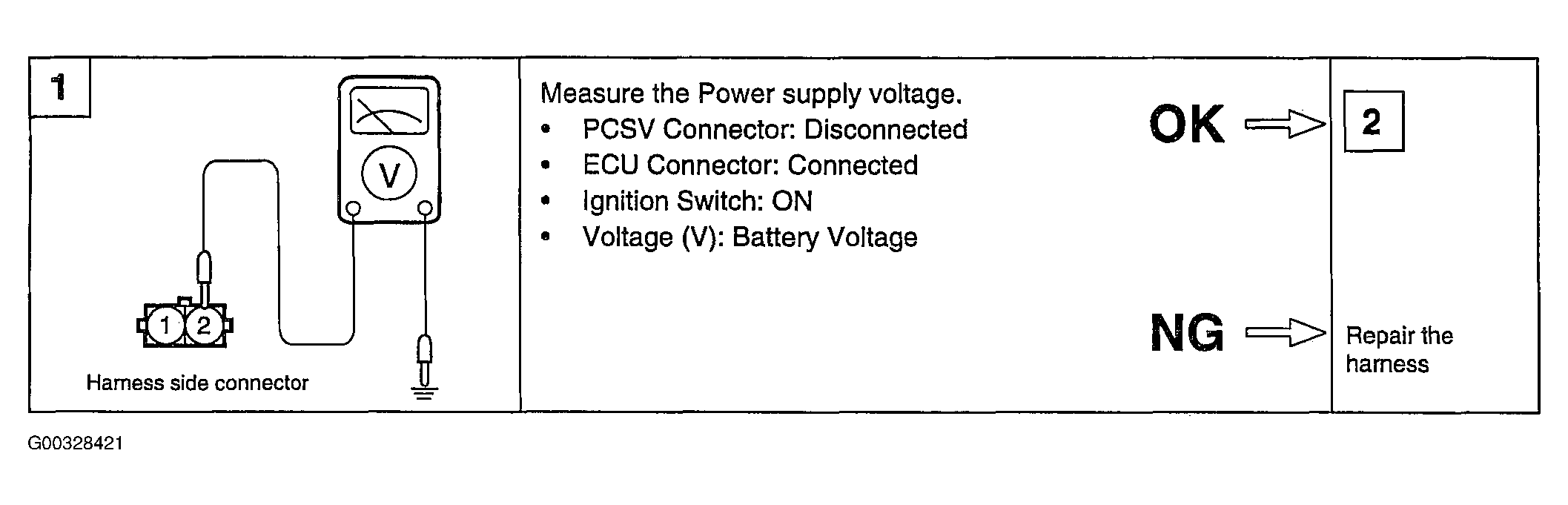

Fig 1: Checking Purge Control Solenoid Valve (PCSV) Harness (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

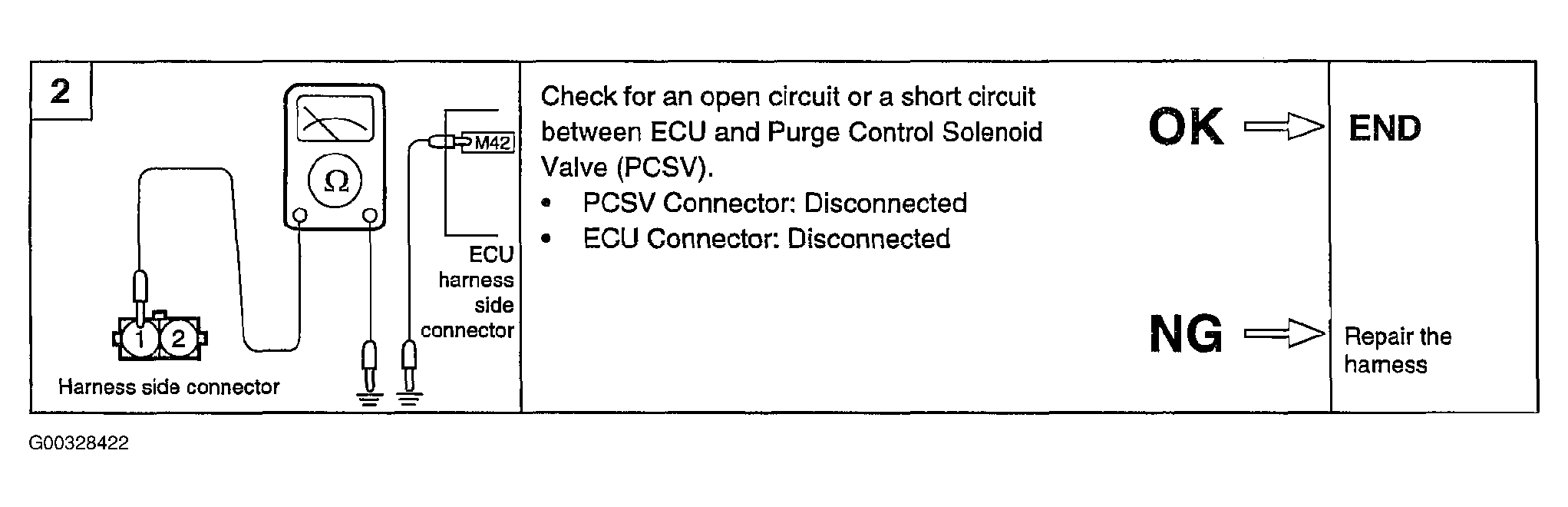

Fig 2: Checking Purge Control Solenoid Valve (PCSV) Harness (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
