Difficult To Start (Engine Cranks)

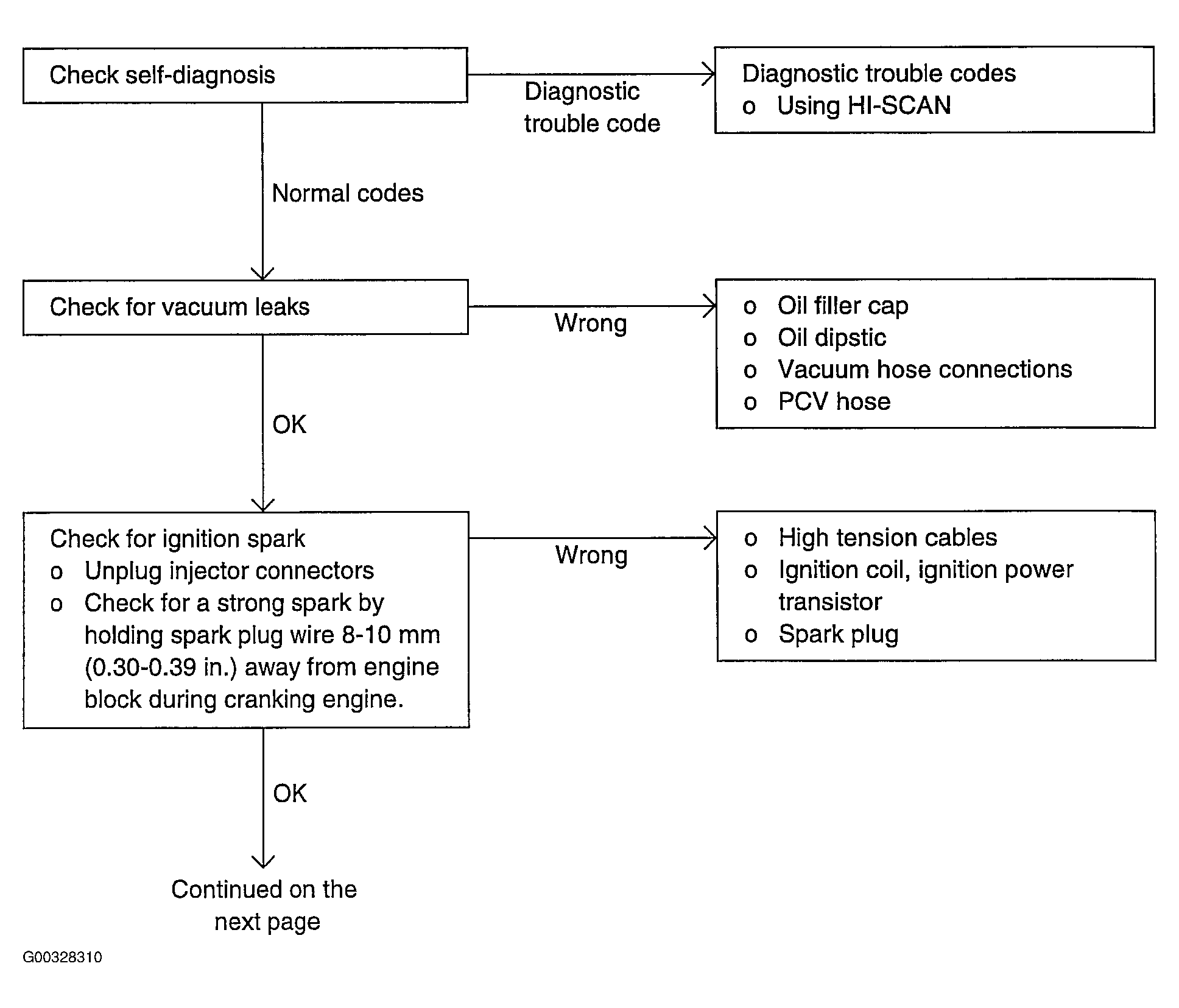

Fig 1: Difficult To Start (Engine Cranks) Troubleshooting Flow Chart (1 Of 2)
G00328310Courtesy of KIA MOTORS AMERICA, INC.

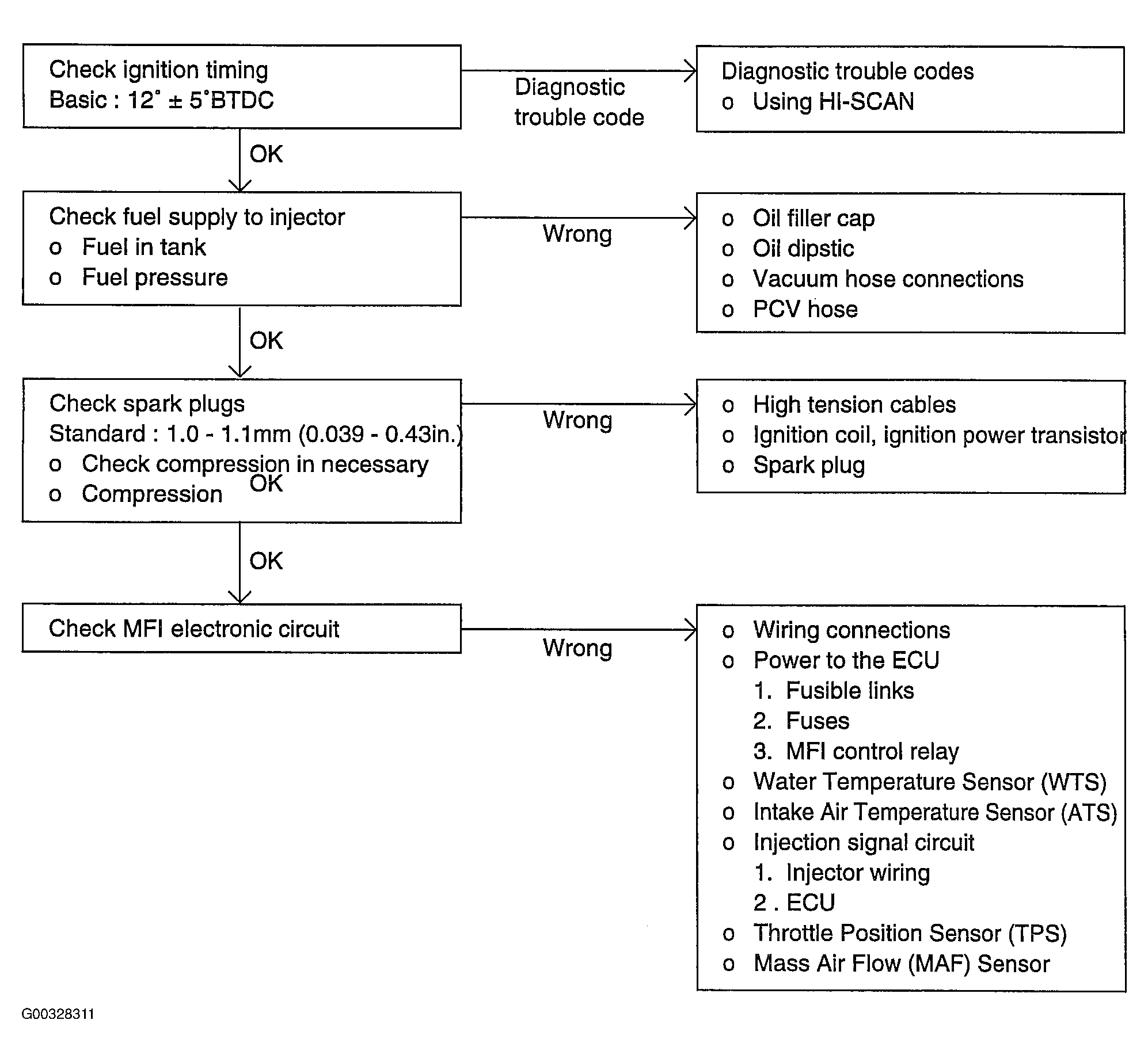

Fig 2: Difficult To Start (Engine Cranks) Troubleshooting Flow Chart (2 Of 2)
G00328311Courtesy of KIA MOTORS AMERICA, INC.
