Communication with scan tool is not possible. (Communication with all system is not possible)

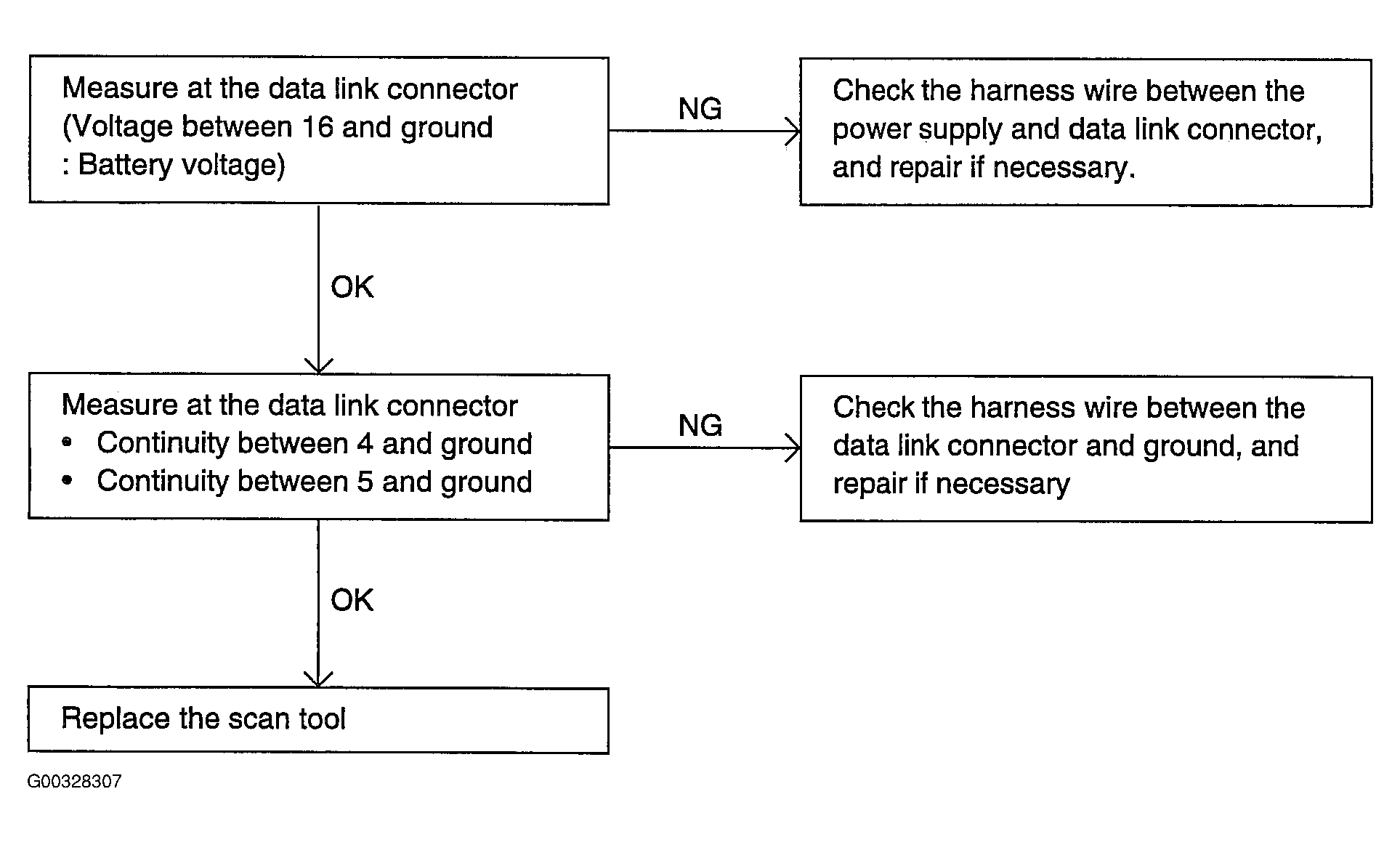

Fig 1: Communication With Scan Tool Is Not Possible (Communication With All System Is Not Possible) Troubleshooting Flow Chart
G00328307Courtesy of KIA MOTORS AMERICA, INC.
