Home >> Kia >> 2005 >> Optima EX, 2.4 6 >> Repair and Diagnosis >> Suspension >> Front Suspension >> General >> Troubleshooting

Front Suspension: General: Troubleshooting

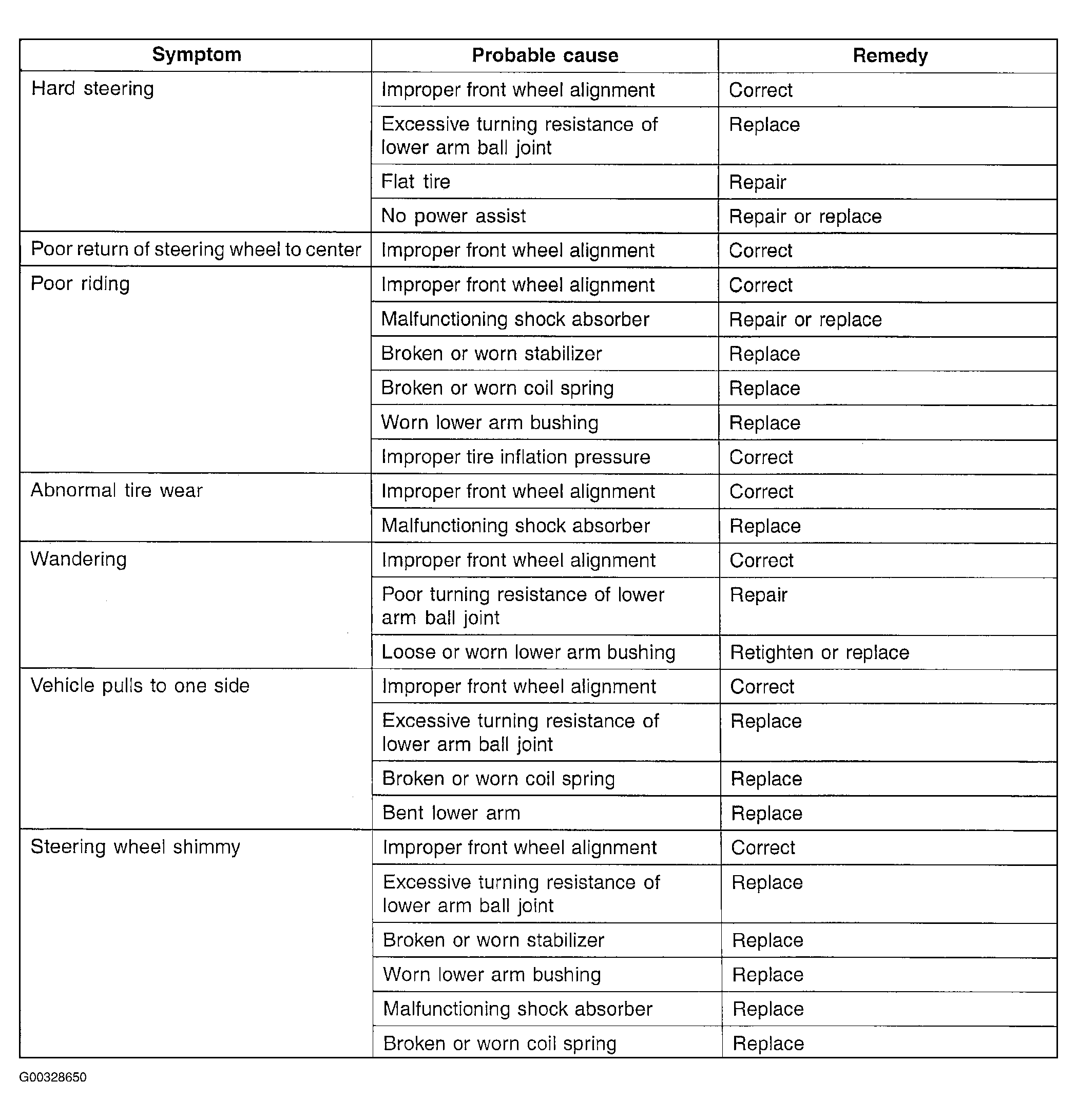

Fig 1: Identifying Troubleshooting Chart (1 Of 2)
G00328650Courtesy of KIA MOTORS AMERICA, INC.

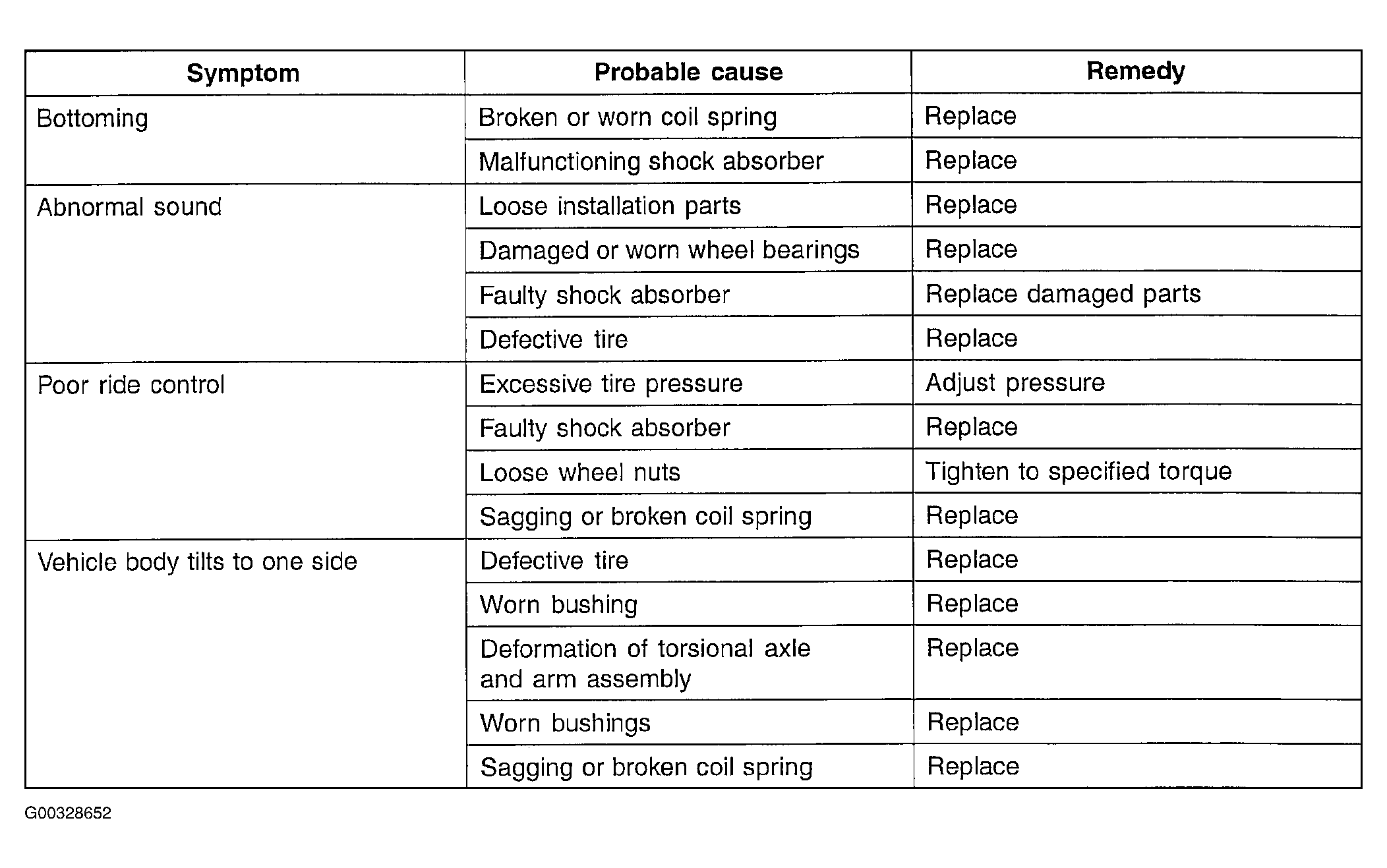

Fig 2: Identifying Troubleshooting Chart (2 Of 2)
G00328652Courtesy of KIA MOTORS AMERICA, INC.
