Kia
>>
2005
>>
Optima EX, 2.4 6
>>
Repair and Diagnosis
>>
Suspension
>>
Front Suspension
>>
General
>>
Special Service Tools
Special Service Tools

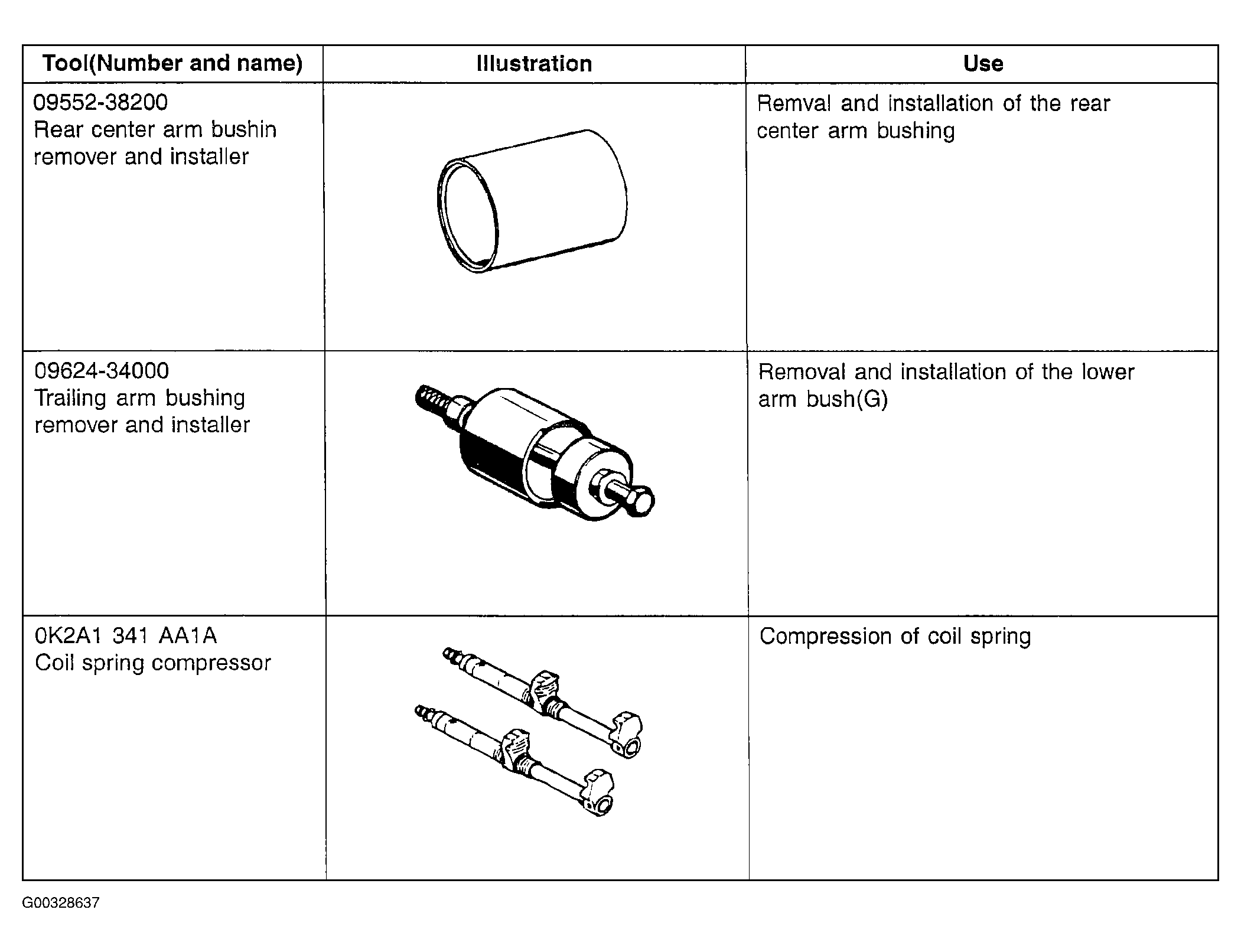

Fig 1: Identifying Special Service Tools (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

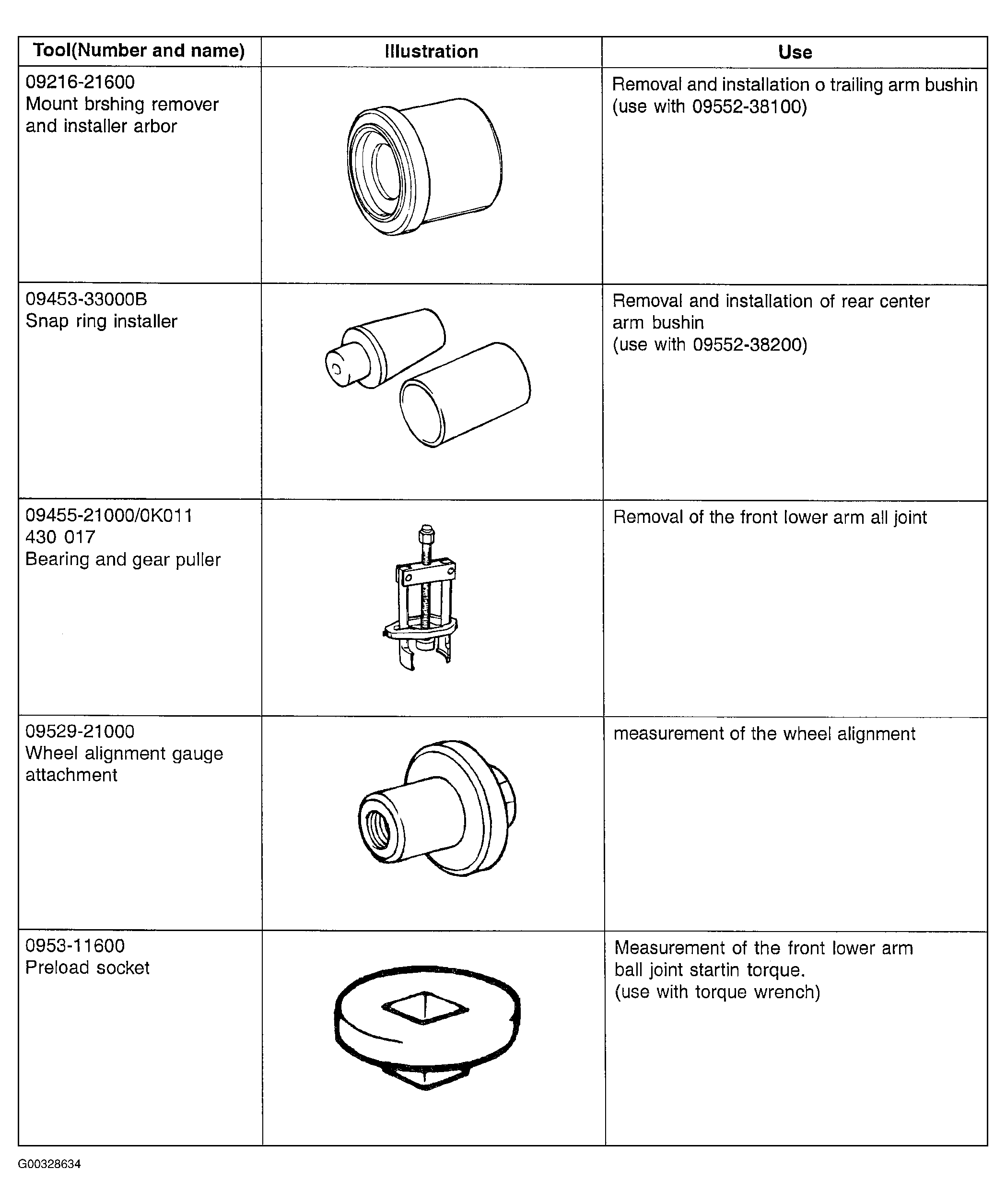

Fig 2: Identifying Special Service Tools (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

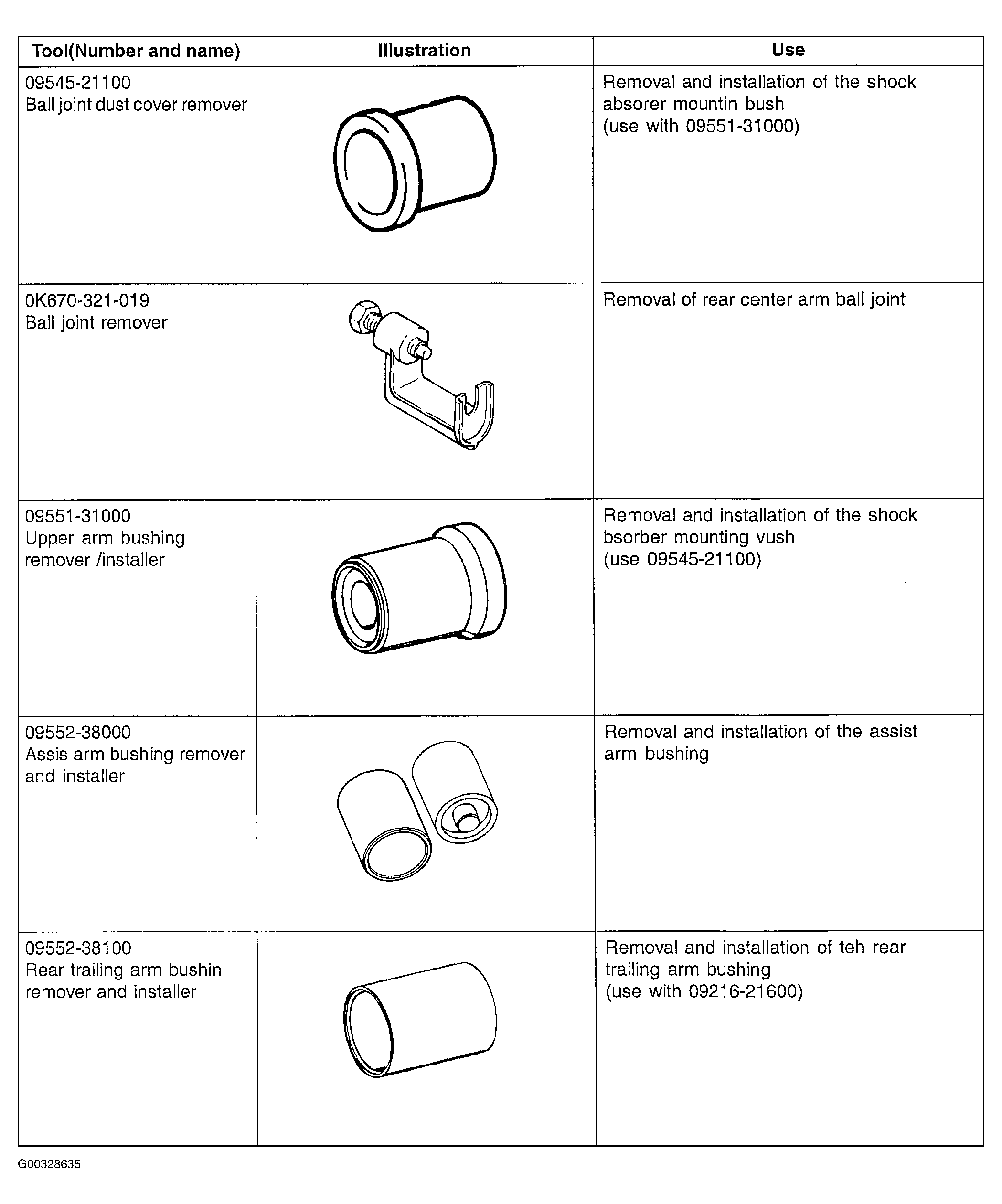

Fig 3: Identifying Special Service Tools (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
