Strut Assembly: Removal

  1. Remove the wheel and tire.
  2. Detach the brake hose from the fork.

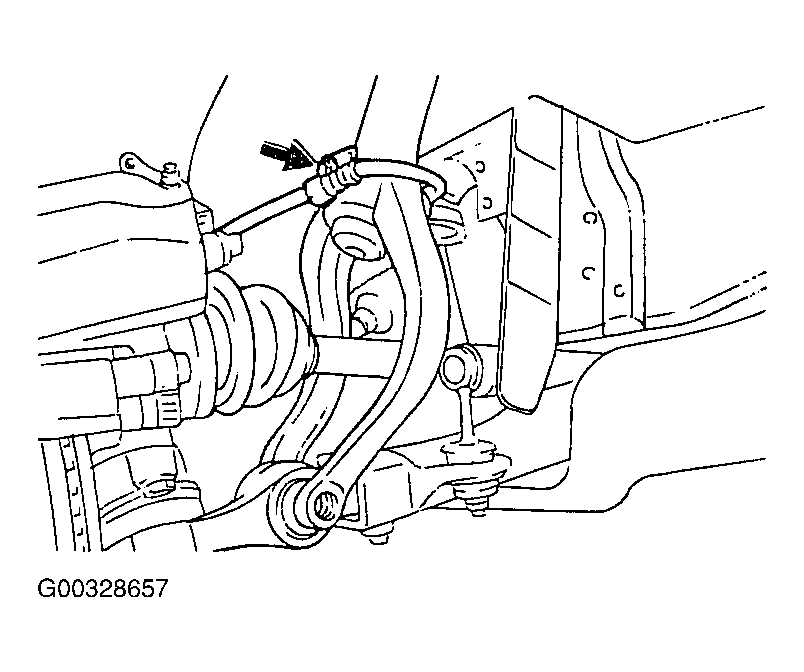

    Fig 1: Disconnecting Brake Hose From Fork
    G00328657Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the bolt from the shock absorber bushing.

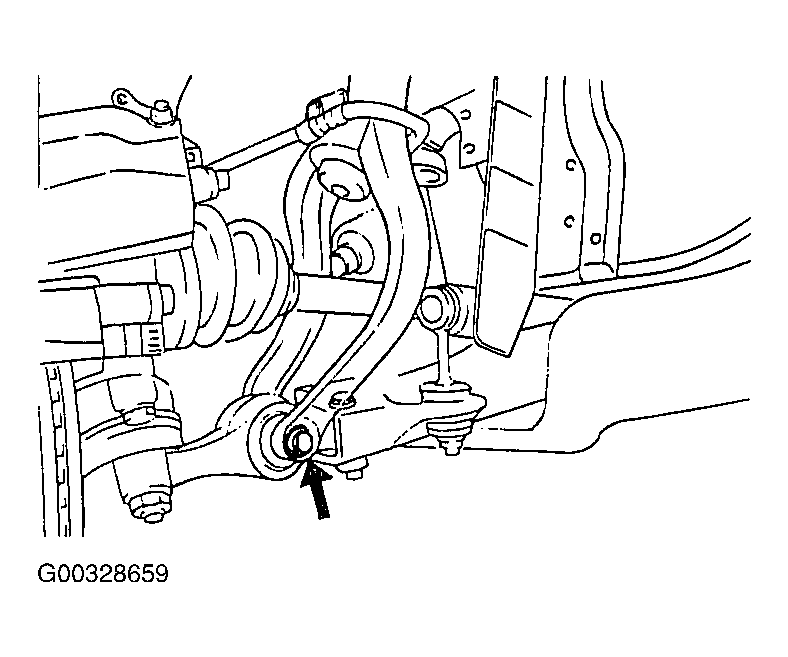

    Fig 2: Removing Shock Absorber Bushing Bolt
    G00328659Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the bolt then remove the fork from the shock absorber.

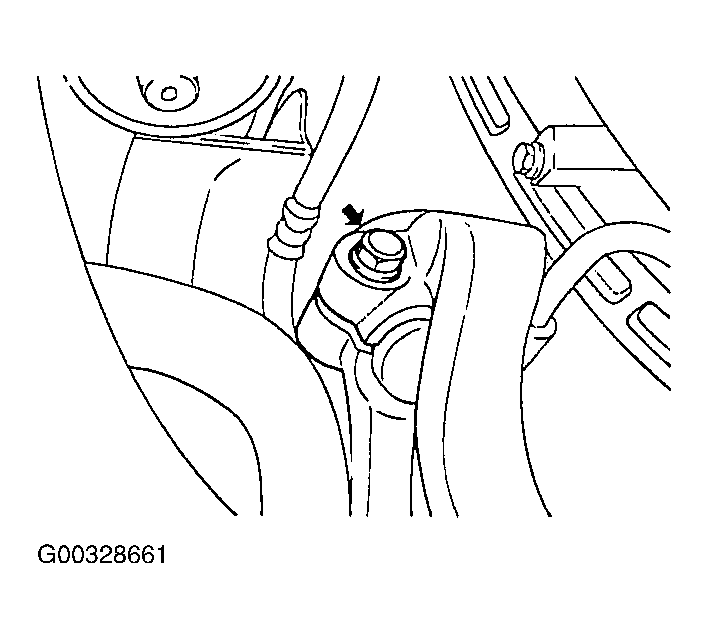

    Fig 3: Removing Fork From Shock Absorber
    G00328661Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the strut upper mounting nuts (3) and top mounting ring.

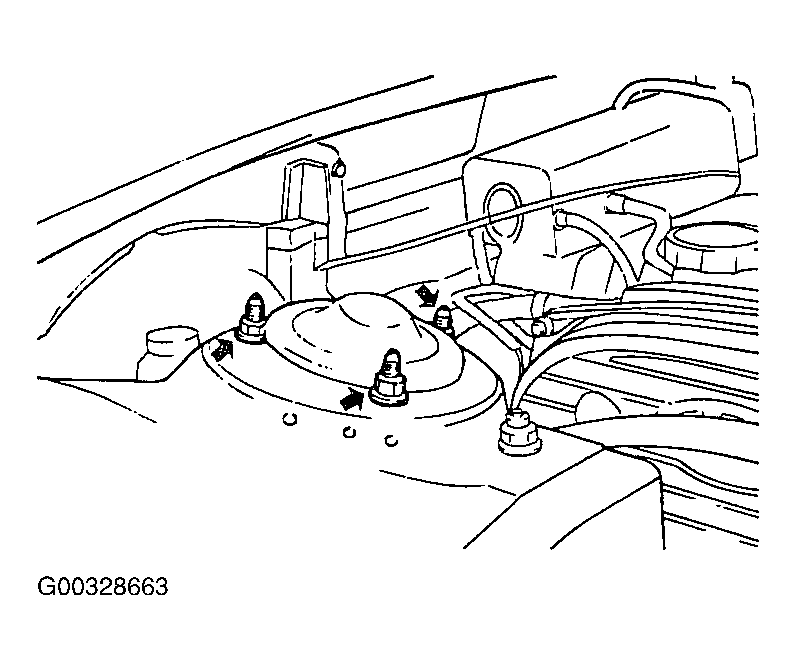

    Fig 4: Removing Strut Upper Mounting Nuts
    G00328663Courtesy of KIA MOTORS AMERICA, INC.
  6. While pushing the axle assembly upward, remove the strut assembly.
