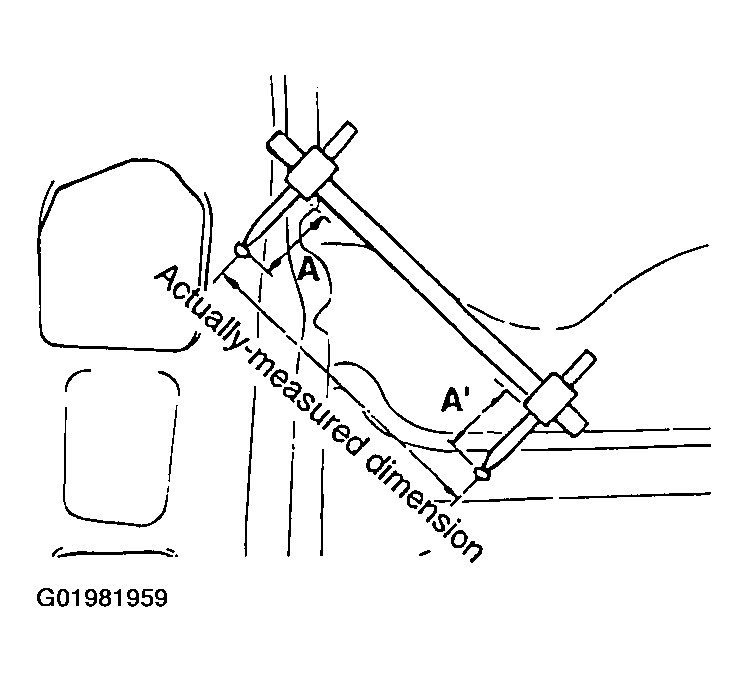

Actual-Measurement Dimensions
- These dimensions indicate the actual linear distance between measurement points, and are the reference dimensions for use if a tracking gauge is used for measurement.
- Measure by first adjusting both probes to the same length (A=A')NOTE: Check the probes and gauge itself to make sure there is no free play.
