Circuit Diagram And Output Feature (WTS)

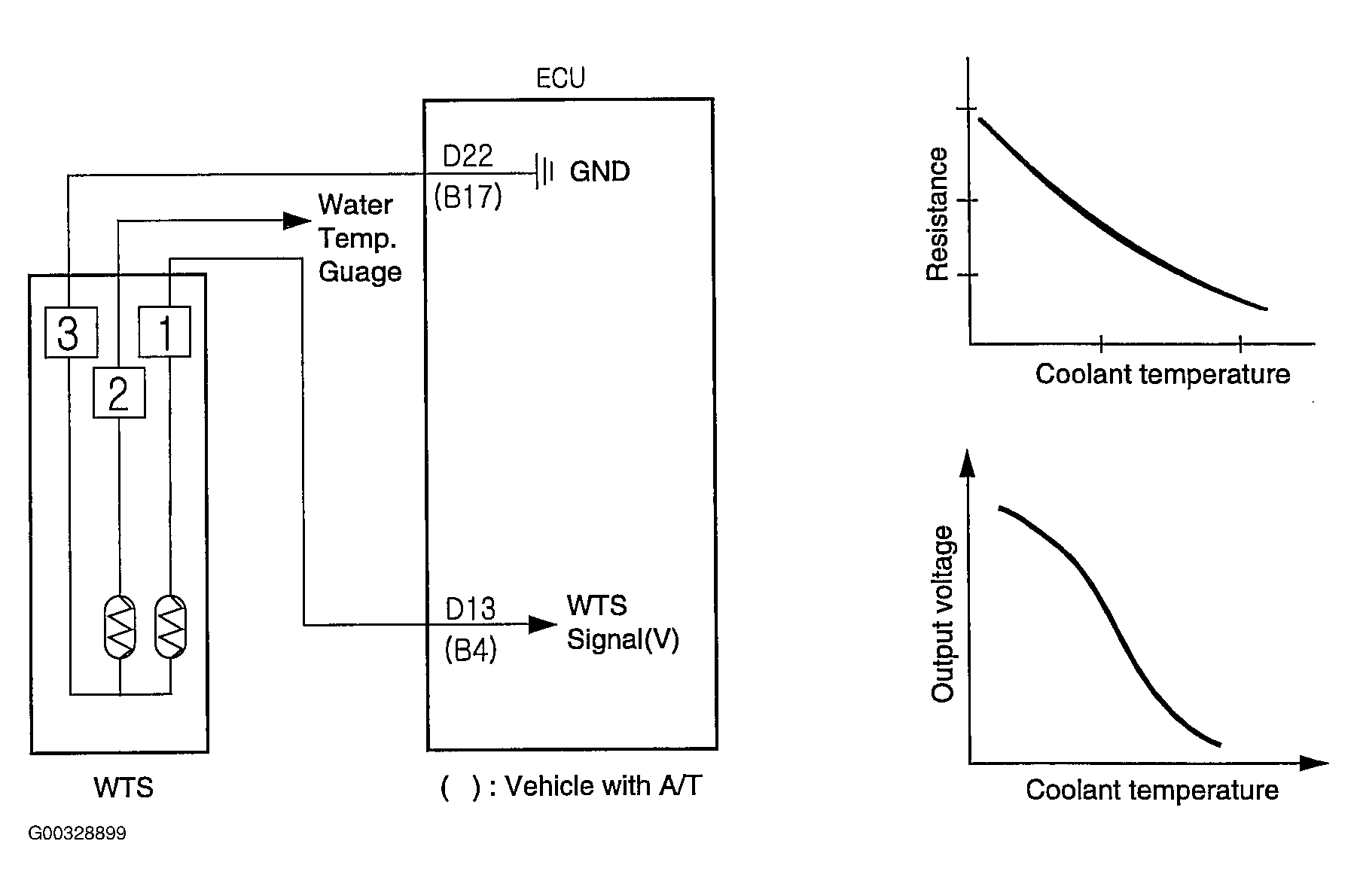

Fig 1: Identifying Circuit & Output Feature Diagram (WTS)

G00328899

Courtesy of KIA MOTORS AMERICA, INC.
