Manifold Absolute Pressure (Map) Sensor: Troubleshooting: Procedures

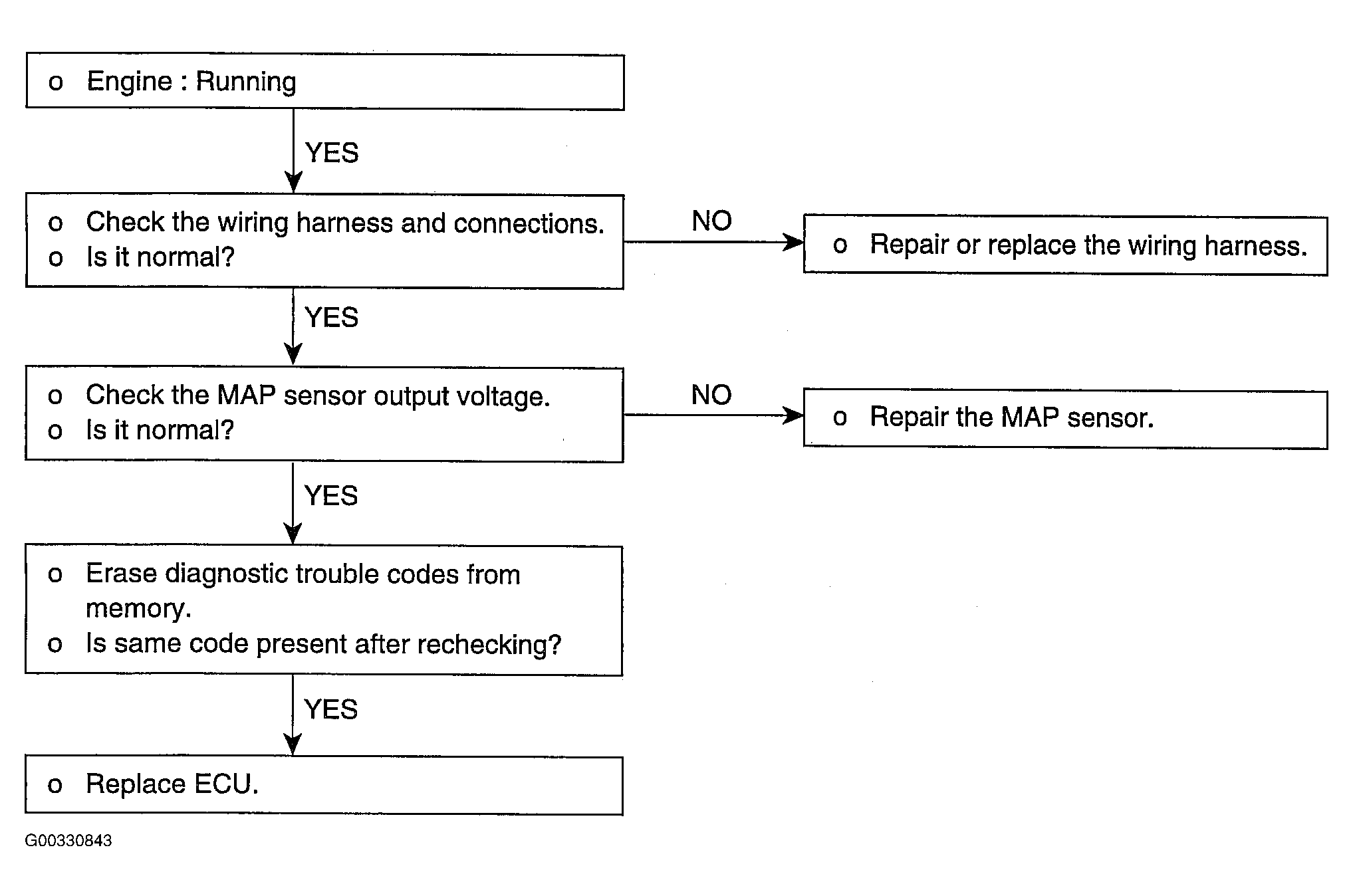

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Troubleshooting Chart

G00330843

Courtesy of KIA MOTORS AMERICA, INC.
