Optima EX, 2.4 6
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System/Fuel System - 2.4L (A/T)
>>
MFI Control System
>>
Manifold Absolute Pressure (Map) Sensor
>>
Harness Inspection Procedures (Map)
Harness Inspection Procedures (Map)

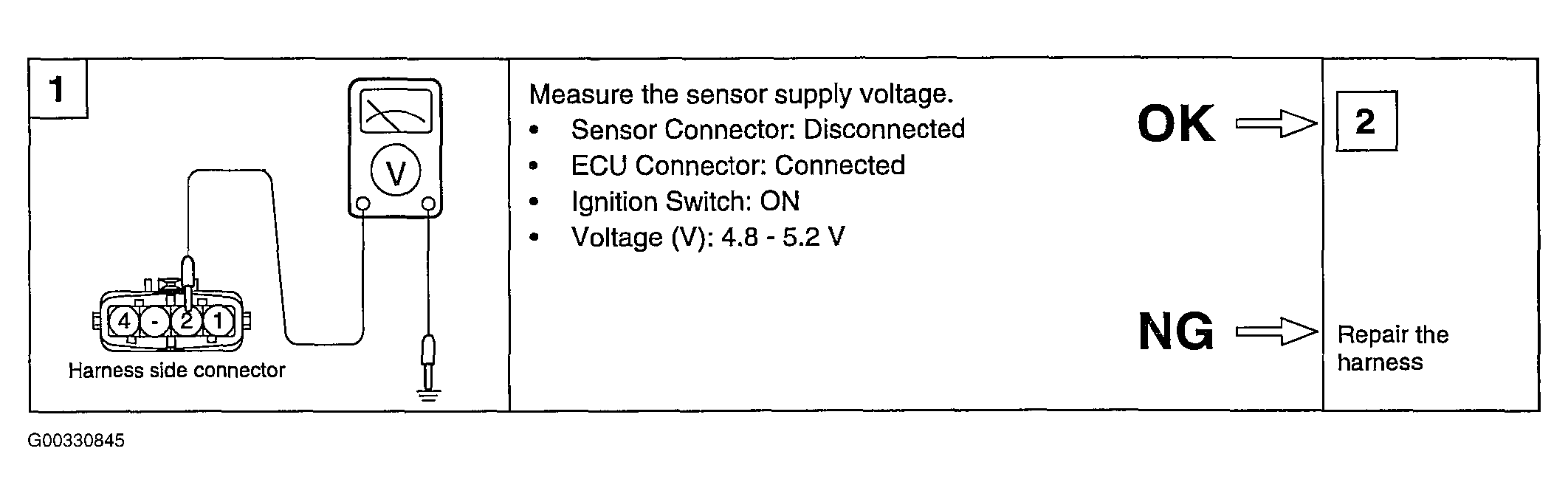

Fig 1: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Inspection Procedures (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

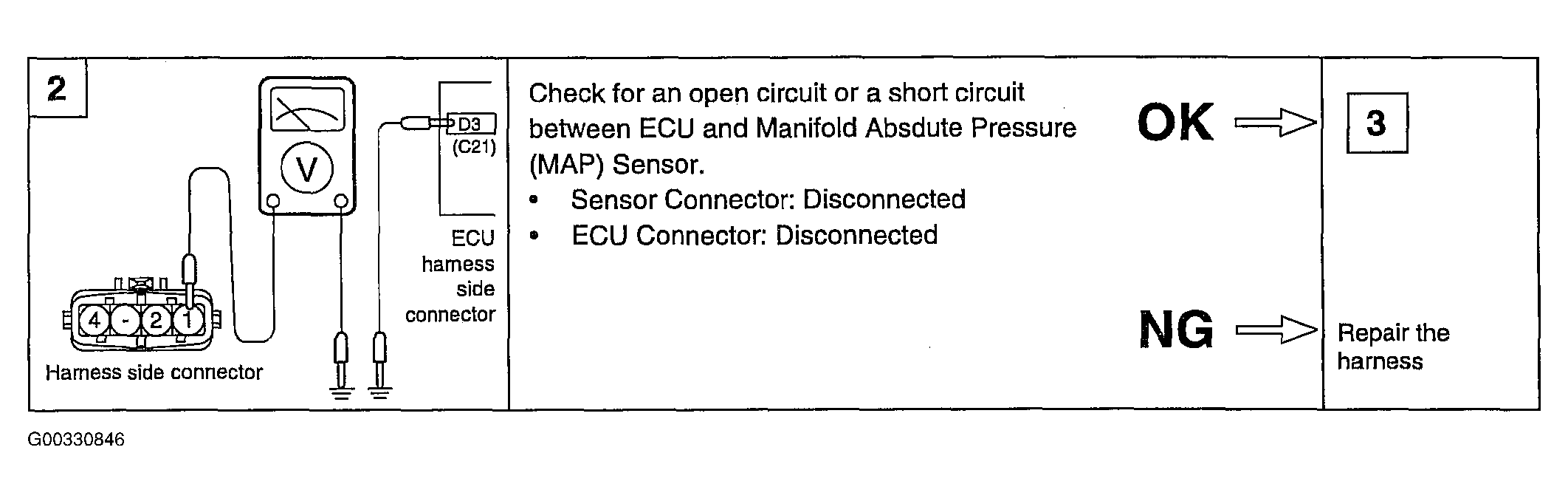

Fig 2: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Inspection Procedures (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

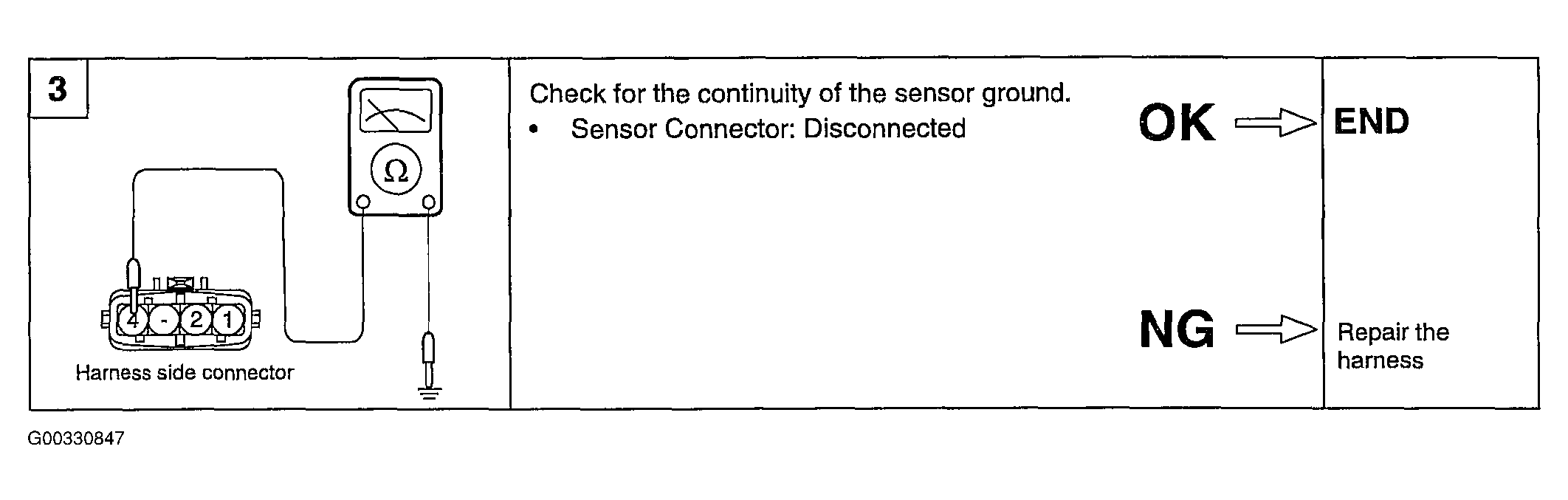

Fig 3: Identifying Manifold Absolute Pressure (MAP) Sensor Harness Inspection Procedures (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
