Optima EX, 2.4 6
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System/Fuel System - 2.4L (A/T)
>>
MFI Control System
>>
Ecu Terminal Layout
>>
Connector (B)
Connector (B)

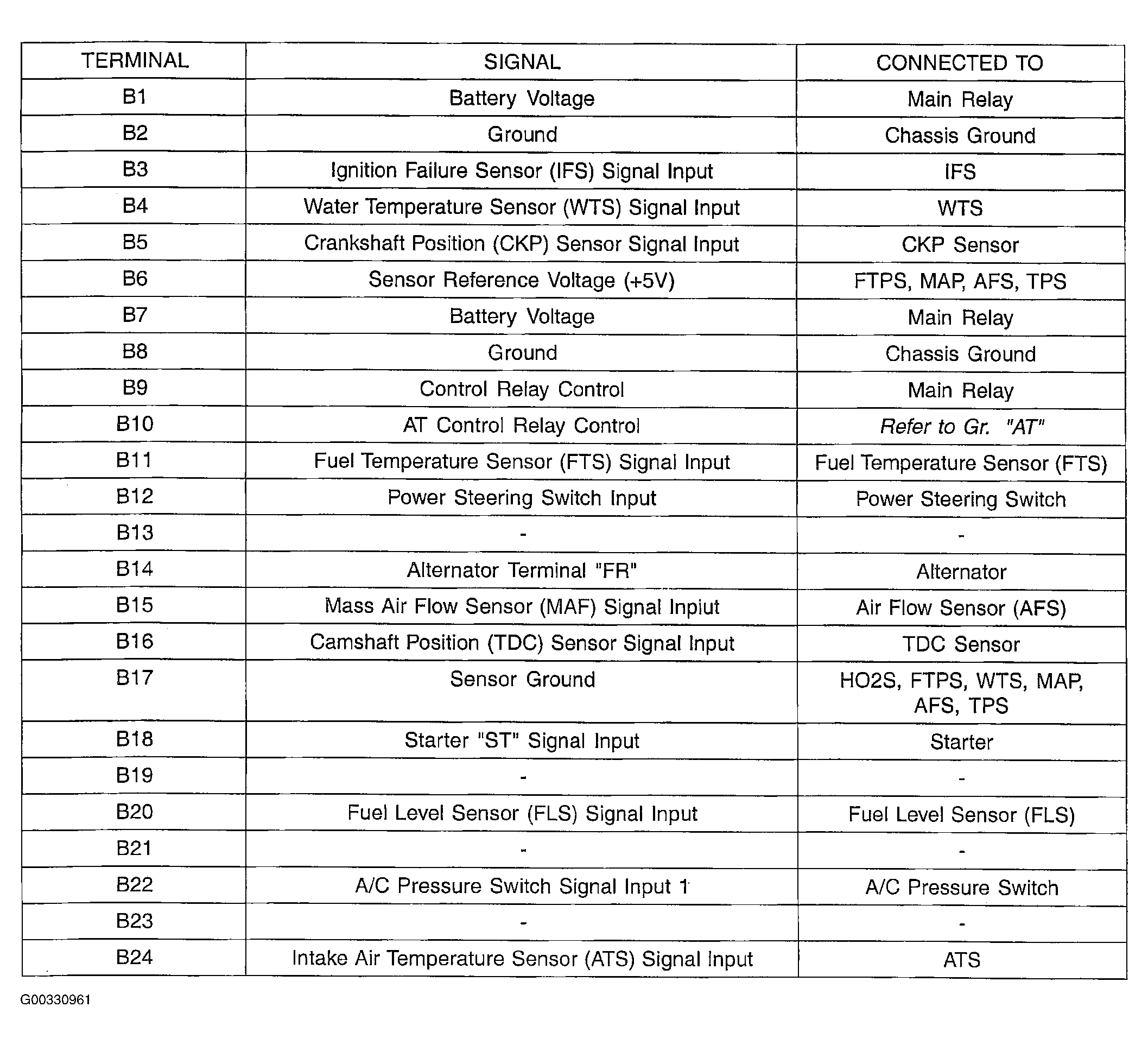

Fig 1: Identifying Terminal Layout Of Connector "B" (1 Of 2) - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Auto Transaxle)
Courtesy of KIA MOTORS AMERICA, INC.

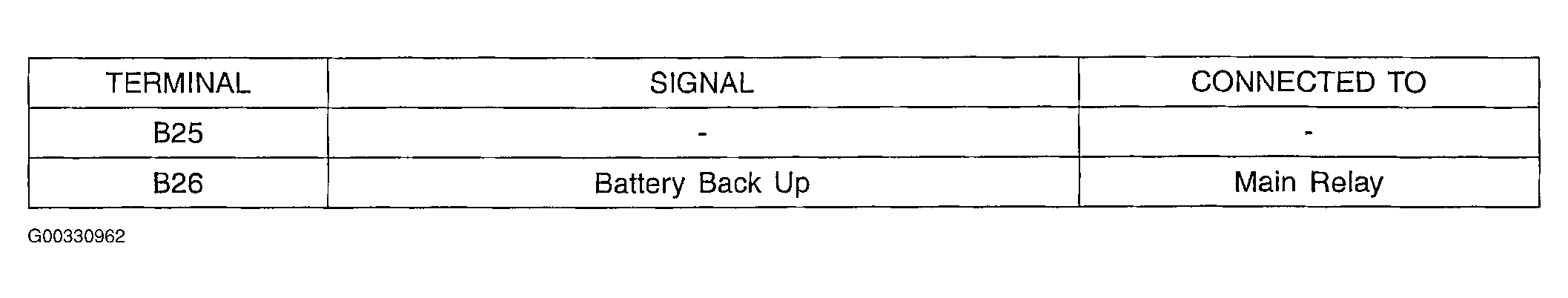

Fig 2: Identifying Terminal Layout Of Connector "B" (2 Of 2) - Vehicles With Transaxle Control Unit (TCU) (Vehicles With Automatic Transaxle)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
