Circuit Diagram (Fuel Tank Pressure Sensor)

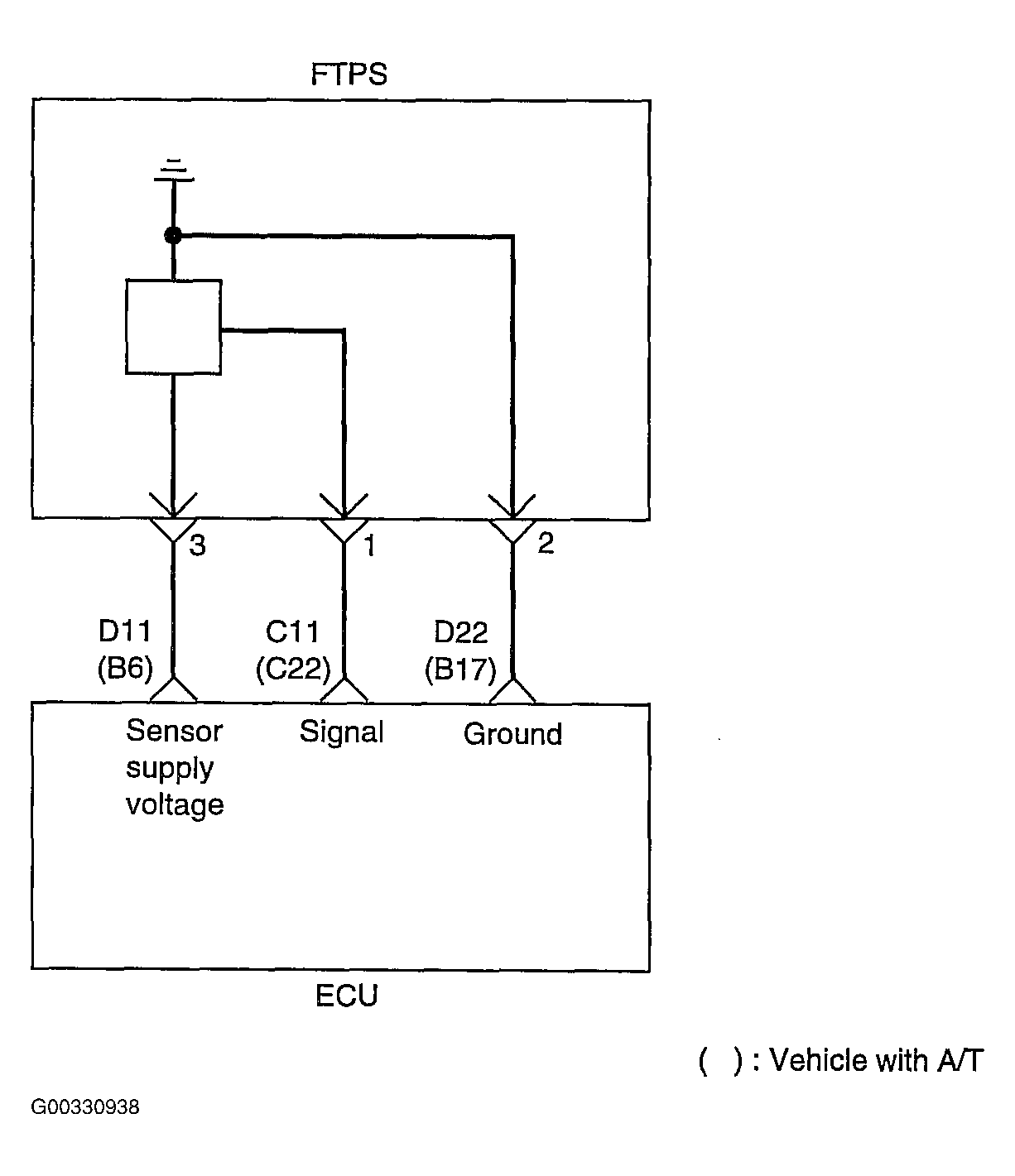

Fig 1: Identifying Fuel Tank Pressure Sensor (FTPS) Circuit Diagram

G00330938

Courtesy of KIA MOTORS AMERICA, INC.
