Optima EX, 2.4 6
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Engine Control System/Fuel System - 2.4L (A/T)
>>
MFI Control System
>>
Crankshaft Position (CKP) Sensor
>>
Harness Inspection Procedures (TDC)
Harness Inspection Procedures (TDC)

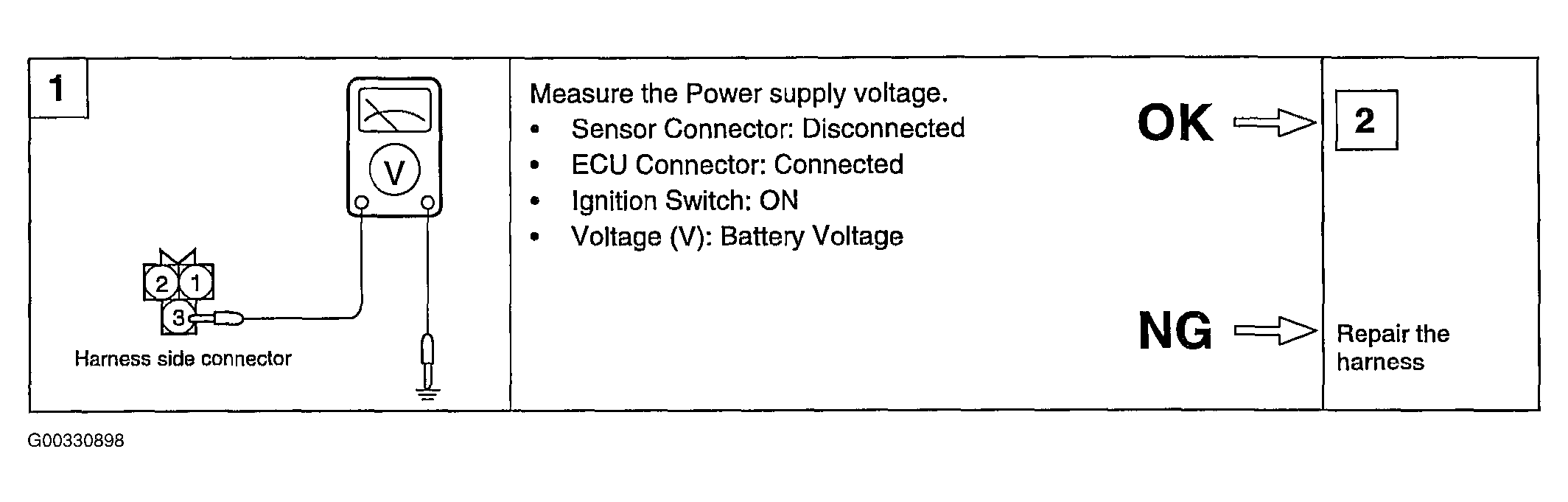

Fig 1: Identifying Crankshaft Position (CKP) Sensor Harness Inspection Procedures (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

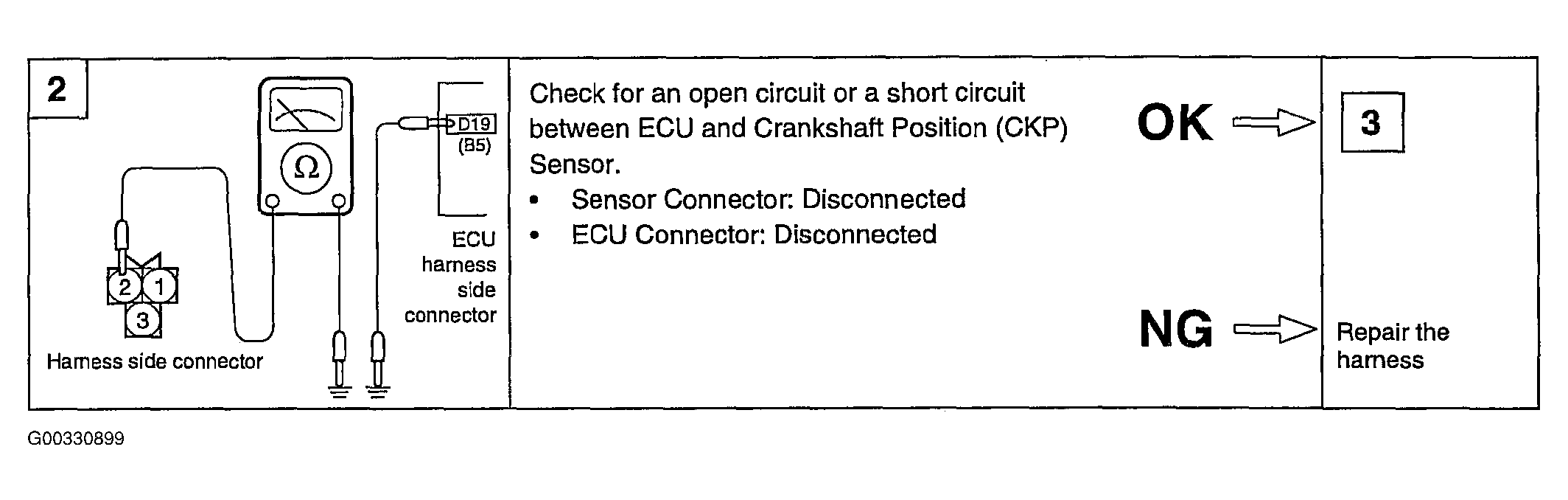

Fig 2: Identifying Crankshaft Position (CKP) Sensor Harness Inspection Procedures (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

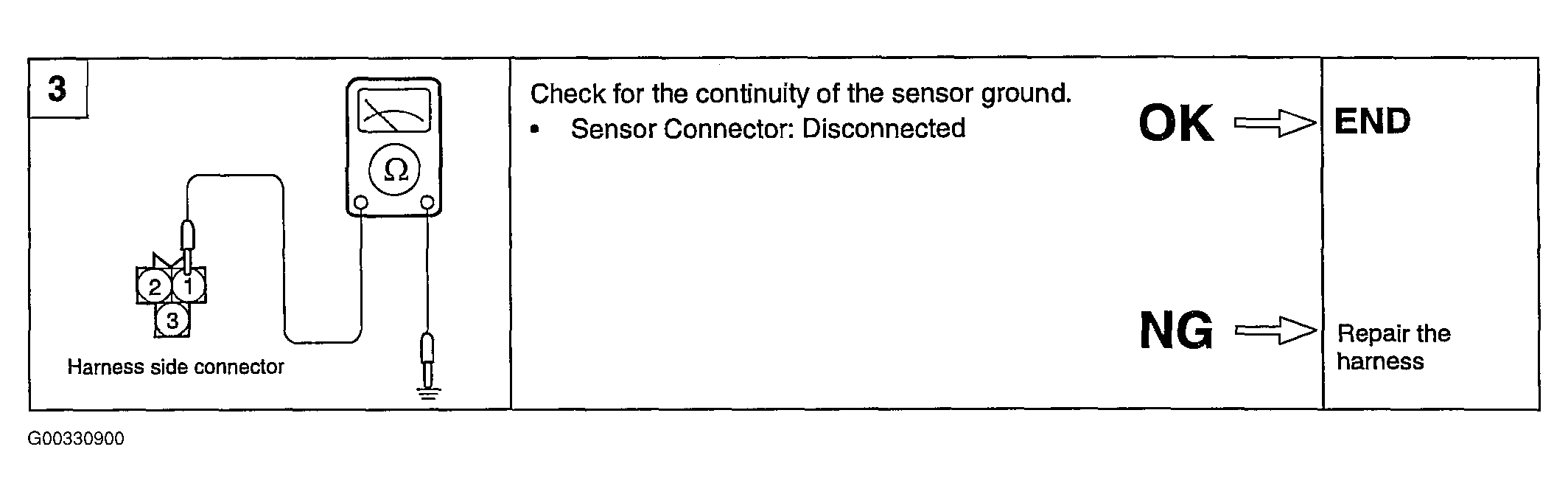

Fig 3: Identifying Crankshaft Position (CKP) Sensor Harness Inspection Procedures (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
