Troubleshooting Procedure

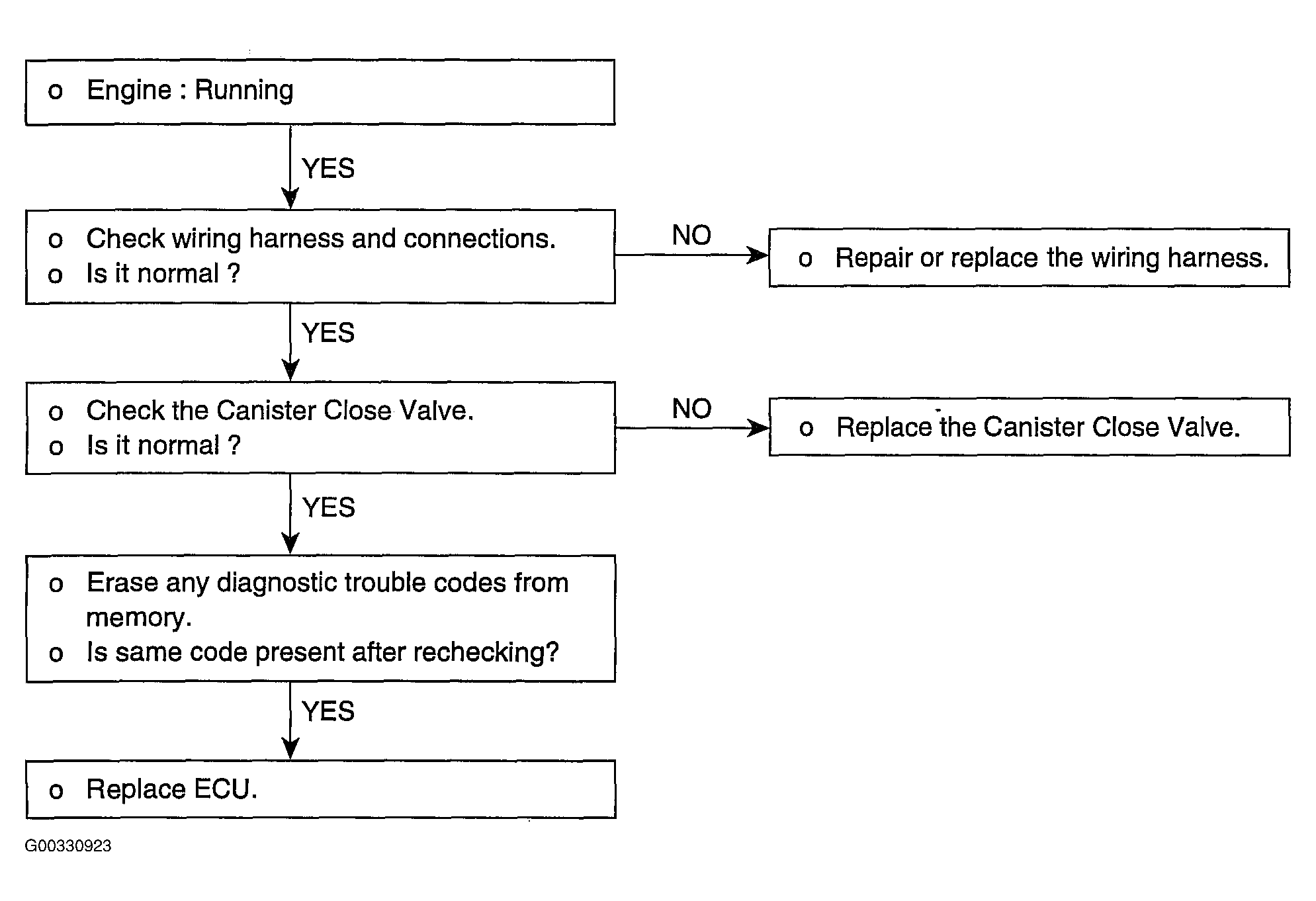

Fig 1: Identifying Canister Close Valve (CCV) Troubleshooting Flow Chart
G00330923Courtesy of KIA MOTORS AMERICA, INC.
