Engine Control System/Fuel System - 2.4L (A/T)
>>
Fuel System
>>
Symptom Diagnosis
>>
Engine Will Not Start
Engine Will Not Start

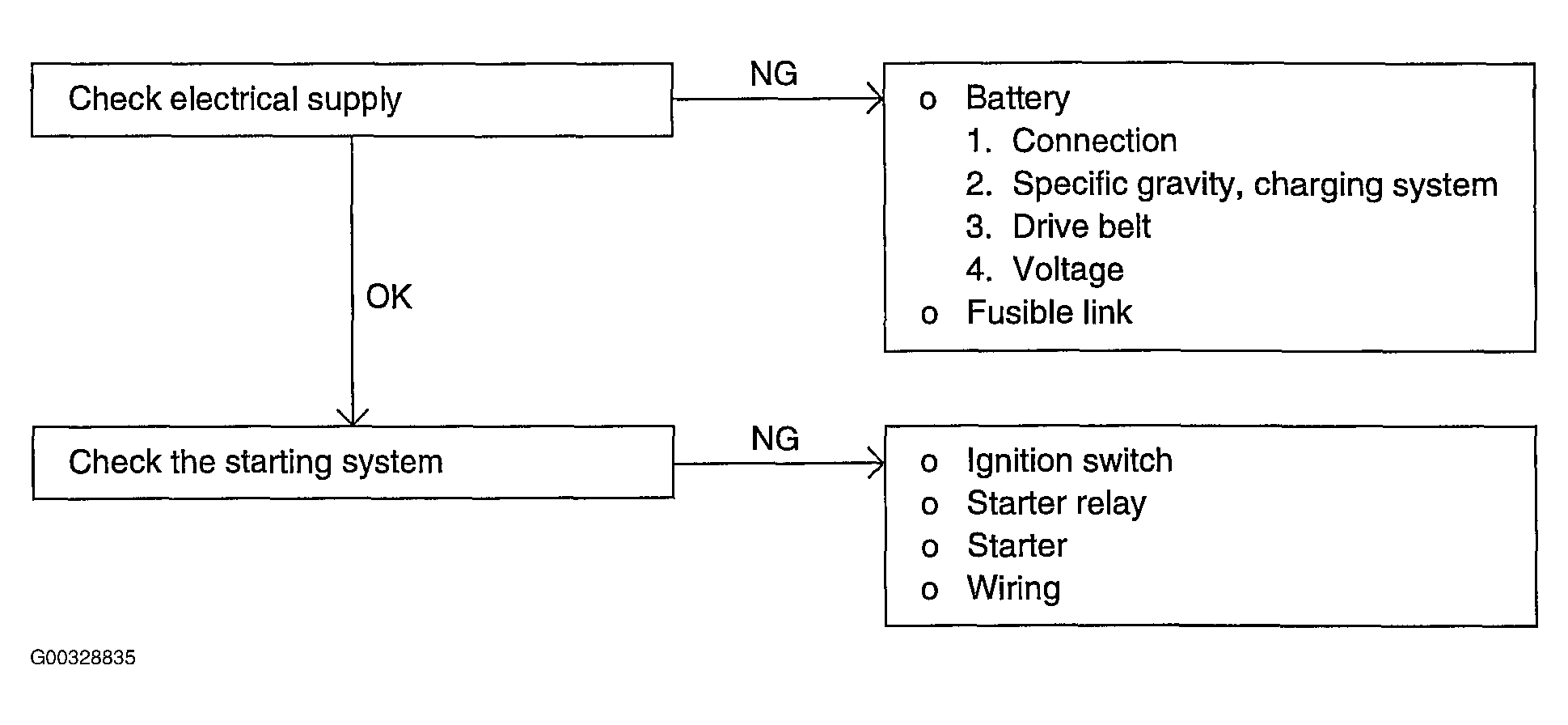

Fig 1: Identifying Engine Will Not Start Symptom Diagnosis Flow Chart
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
