Specific Gravity Test

  1. Measure the specific gravity of the coolant with a hydrometer.
  2. Measure the coolant temperature, and calculate the concentration from the relation between the specific gravity and temperature, using the following illustration for reference.

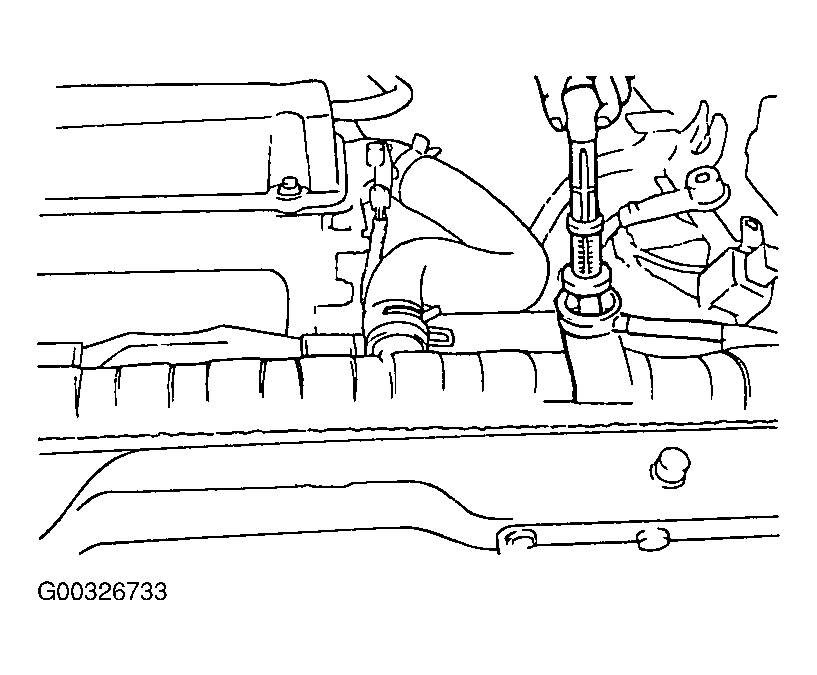

Fig 1: Measuring Specific Gravity Of Coolant
G00326733Courtesy of KIA MOTORS AMERICA, INC.
