Rear Roll Stopper

  1. Remove the bolt from the rear roll stopper.
  2. Remove the rear roll stopper from the subframe.

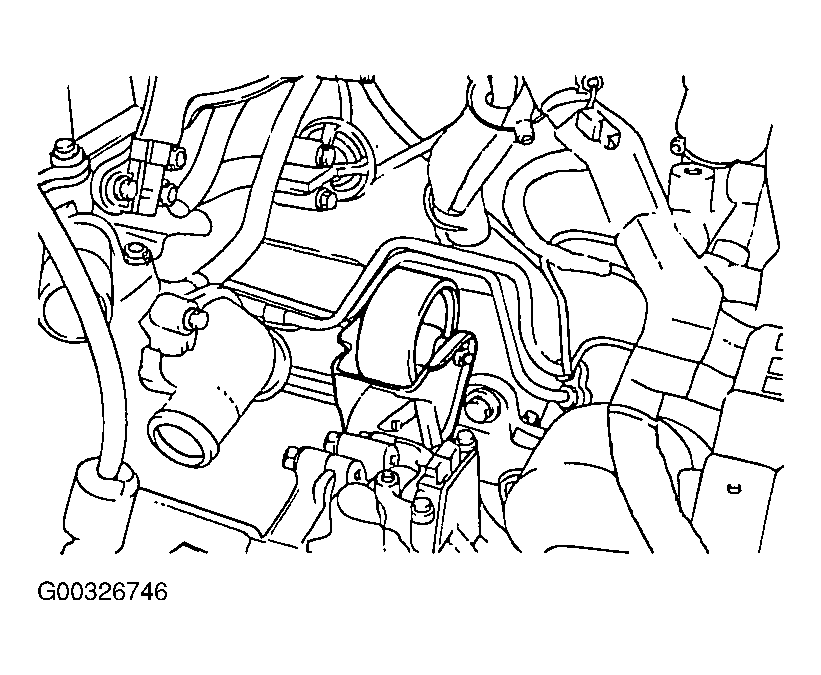

Fig 1: Removing Rear Roll Stopper From Subframe
G00326746Courtesy of KIA MOTORS AMERICA, INC.
