Front Roll Stopper

Remove the front roll stopper bracket from the sub-frame.

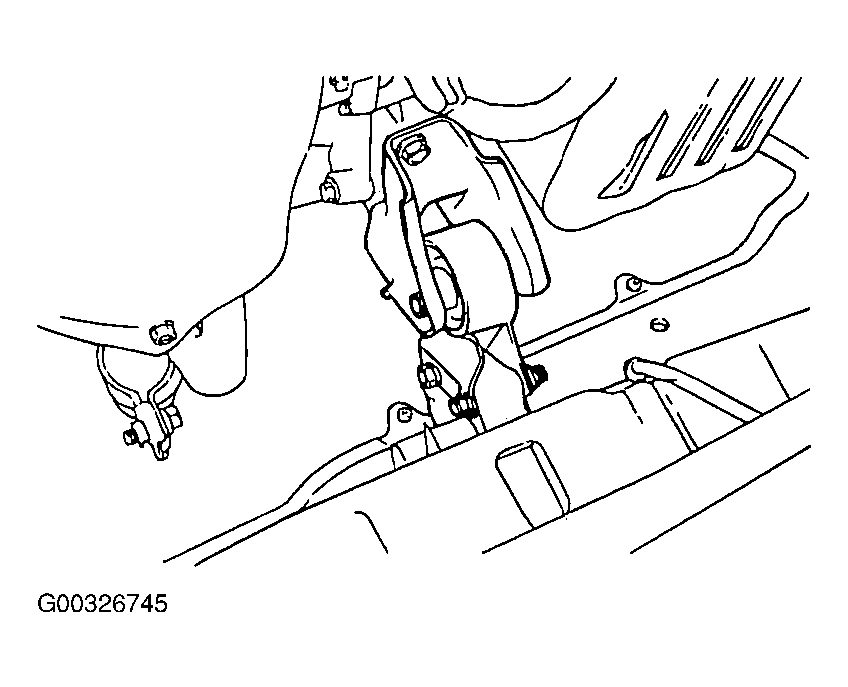

Fig 1: Removing Front Roll Stopper From Subframe

G00326745

Courtesy of KIA MOTORS AMERICA, INC.
