Home >> Kia >> 2005 >> Optima EX, 2.4 6 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.4L 4-Cylinder Engine >> Cooling System >> Engine Coolant Pump >> Components

Engine Coolant Pump: Components

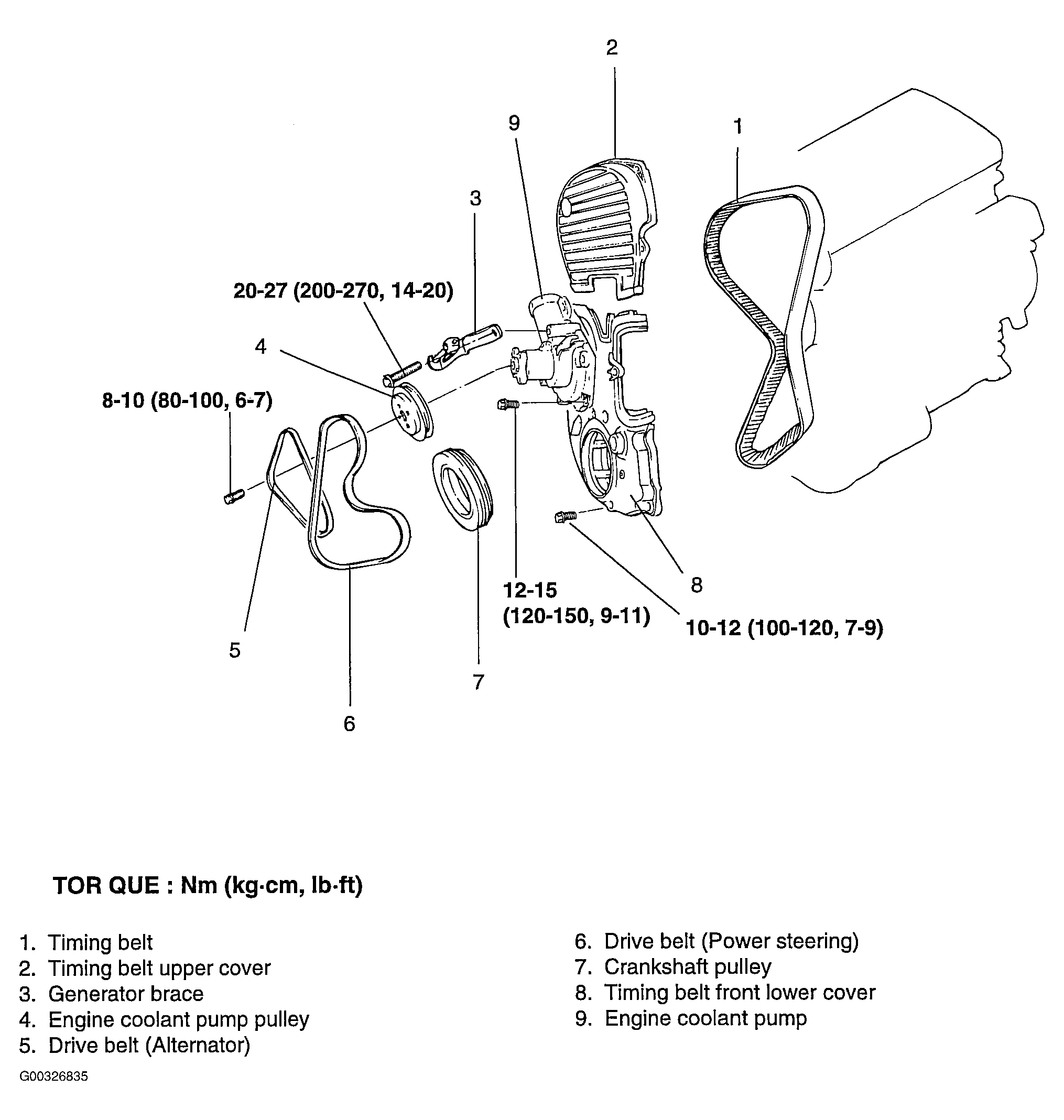

Fig 1: Removing & Installing Engine Coolant Pump
G00326835Courtesy of KIA MOTORS AMERICA, INC.
