Axle Shafts: Description
There are 3 different axle shaft joint types for this vehicle. Models with the 2.7L 6-cylinder engine use a center bearing and inner shaft that is not used on the 2.4L 4-cylinder engine. Removal, preliminary inspection and installation procedures for all models are similar, however disassembly, detailed inspection and reassembly procedures vary between types. For specific joint types, see AXLE SHAFT TYPES table.
NOTE:

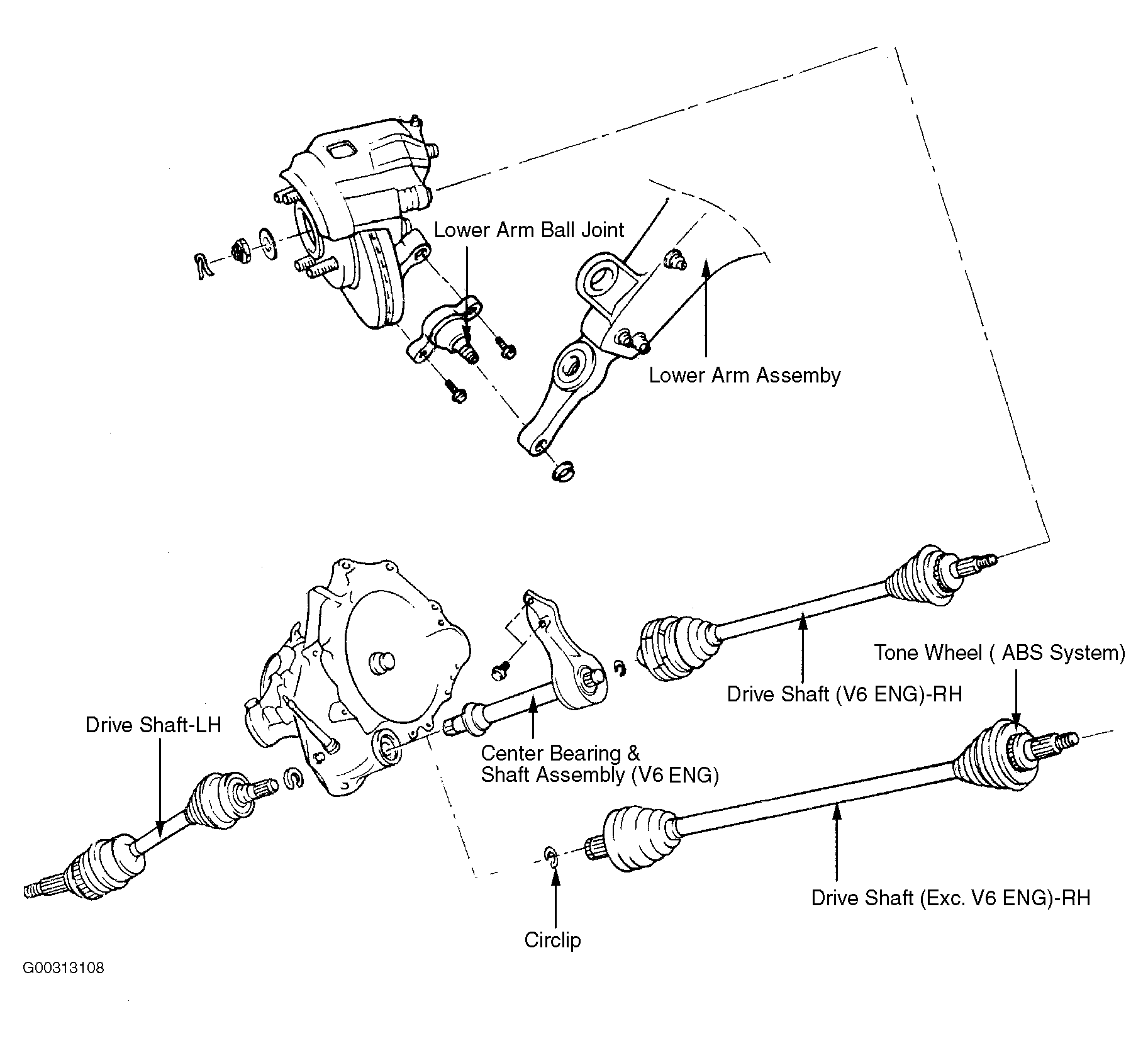

For exploded view of axle shaft components, see Figure.
AXLE SHAFT TYPES
| Application | Outer Joint Type | Inner Joint Type | |
|---|---|---|---|
| 2.4L | |||
| A/T | B.J. | T.J. | |
| M/T | B.J. | T.J. | |
| 2.7L | |||
| A/T | A.C. | G.I. | |
| M/T | B.J. | D.O.J. | |
