Wheel Speed Sensor: Inspection

Connect an ohmmeter between the wheel speed sensor terminals and measure the resistance.
Service standard

Front : 1300-1900Ω

Rear : 1300-1900Ω

Fig 1: Checking Wheel Speed Sensor (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Connect a voltmeter between the wheel speed sensor terminals, and measure the voltage by turning the wheel.
NOTE: Set the voltmeter to measure AC voltage. Service standard: AC voltage detected.

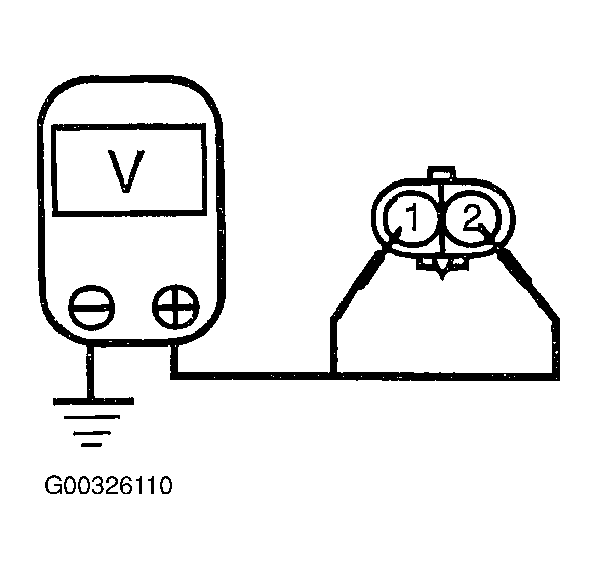

Fig 2: Checking Wheel Speed Sensor (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
