Magentis SE, 2.7 8
>>
Repair and Diagnosis
>>
Brakes
>>
Abs/TCS (Anti-Lock Brake System & Traction Control)
>>
Anti-Lock Brake System (Abs)
>>
Terminal Voltage Chart
Terminal Voltage Chart

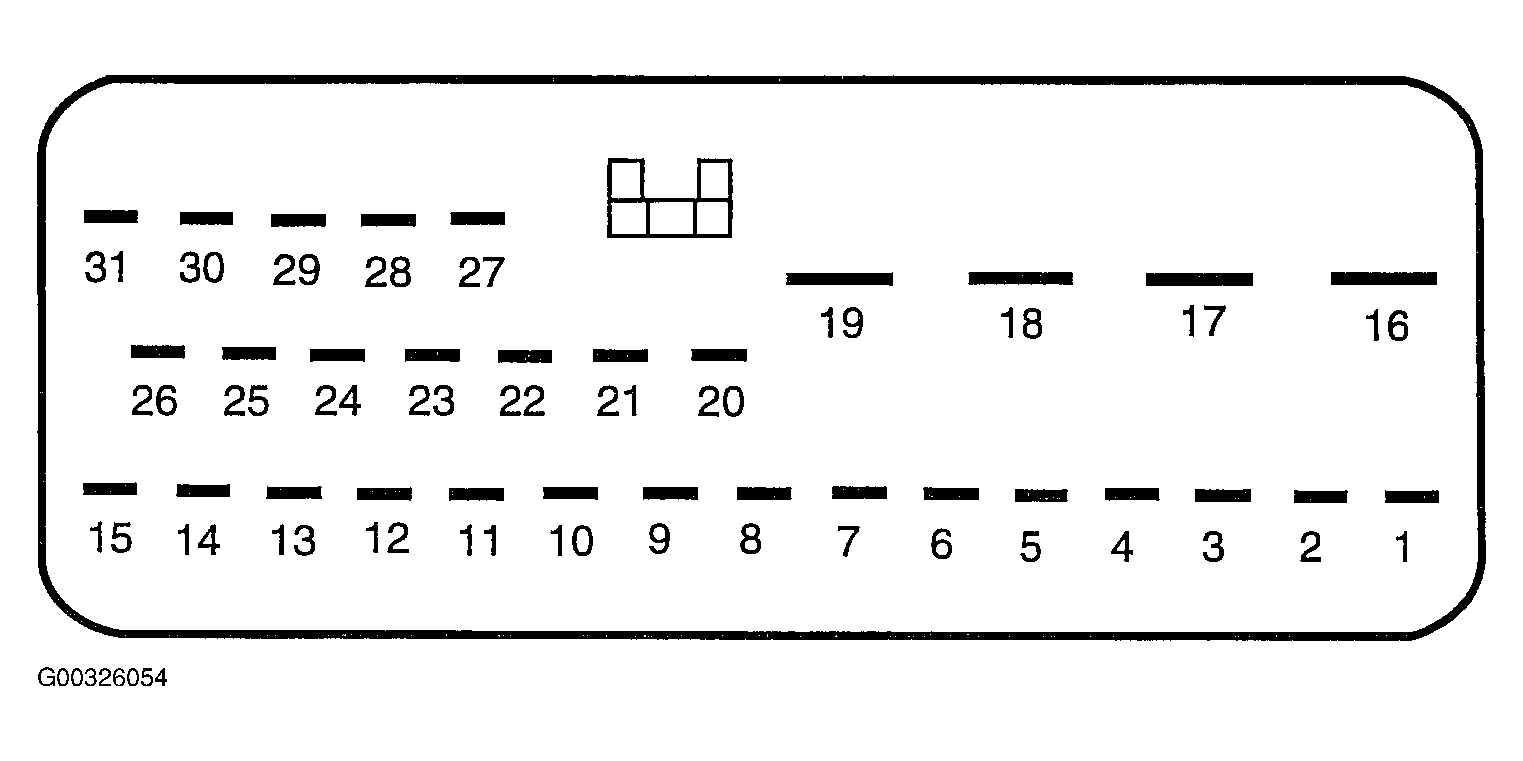

Fig 1: Identifying Hydraulic & Electronic Control Unit (HECU) Terminals
Courtesy of KIA MOTORS AMERICA, INC.

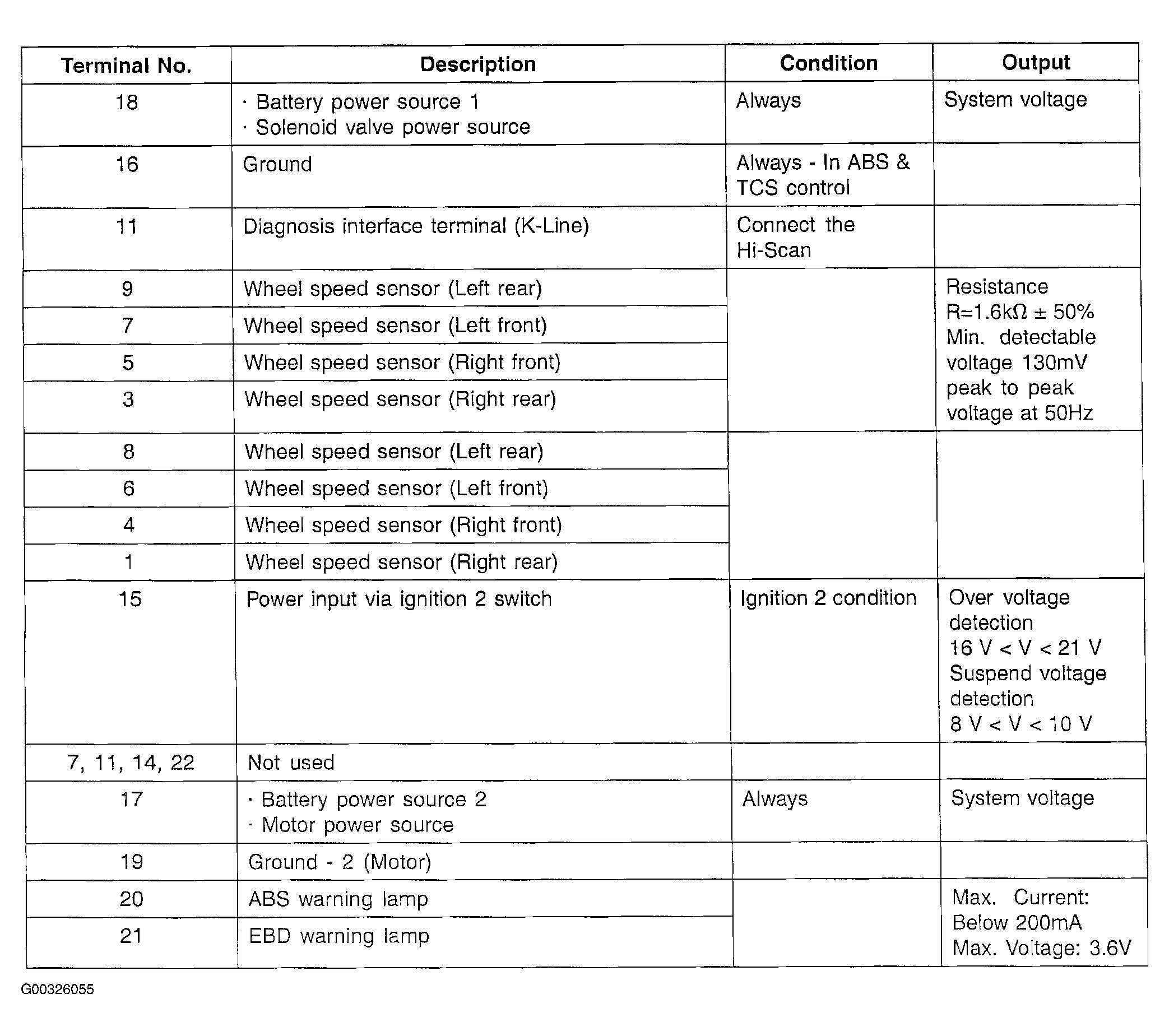

Fig 2: Identifying Hydraulic & Electronic Control Unit (HECU) Terminal Voltage Chart (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

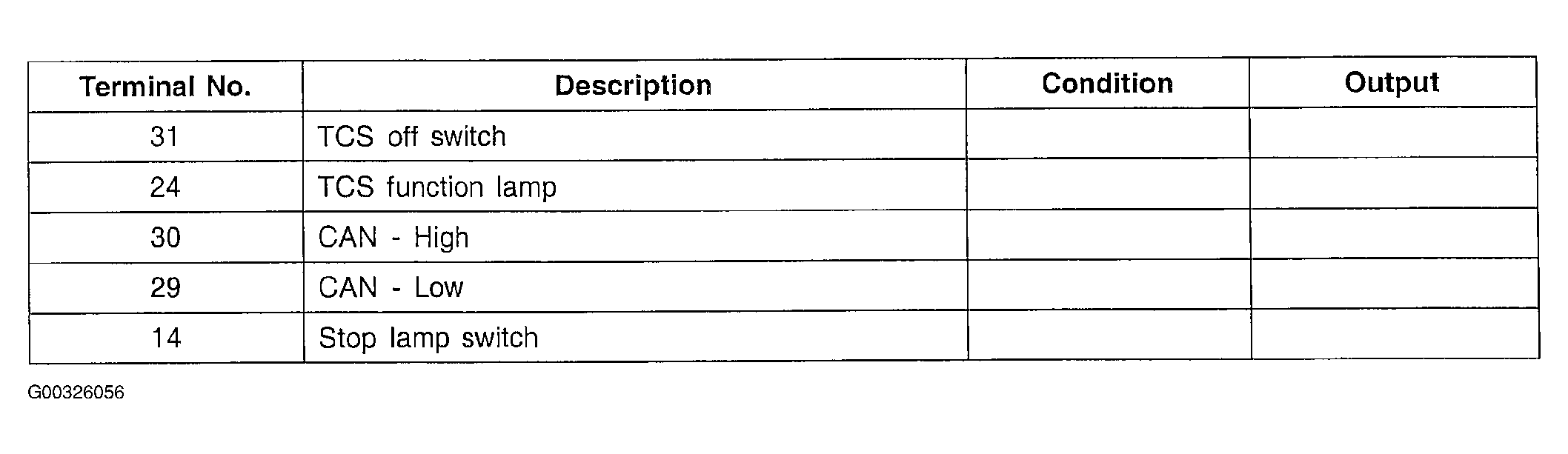

Fig 3: Identifying Hydraulic & Electronic Control Unit (HECU) Terminal Voltage Chart (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
