Power Seat Switch: Inspection: Notes

Operate the power seat switch and check for continuity between terminals. If continuity is not as specified, replace the switch.

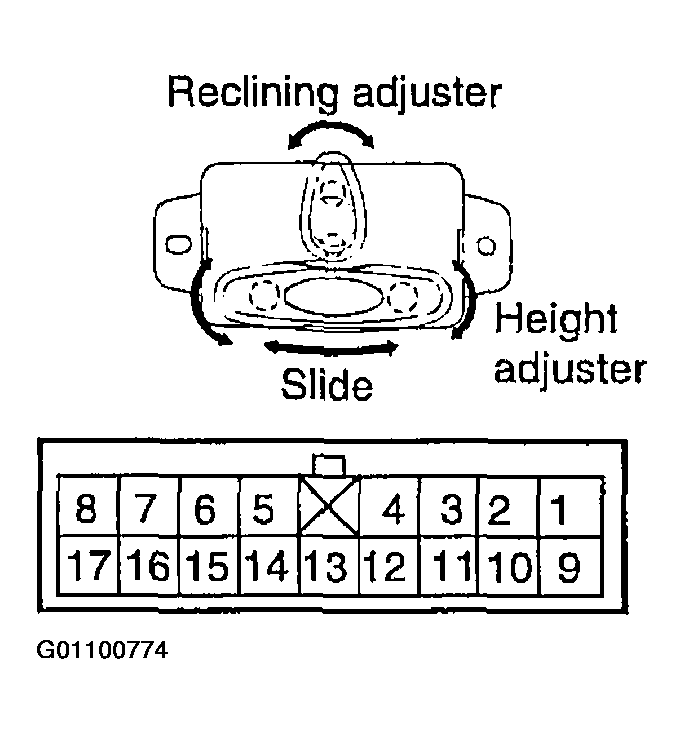

Fig 1: Operating The Power Seat Switch & Connector ID

Courtesy of KIA MOTORS AMERICA, INC.

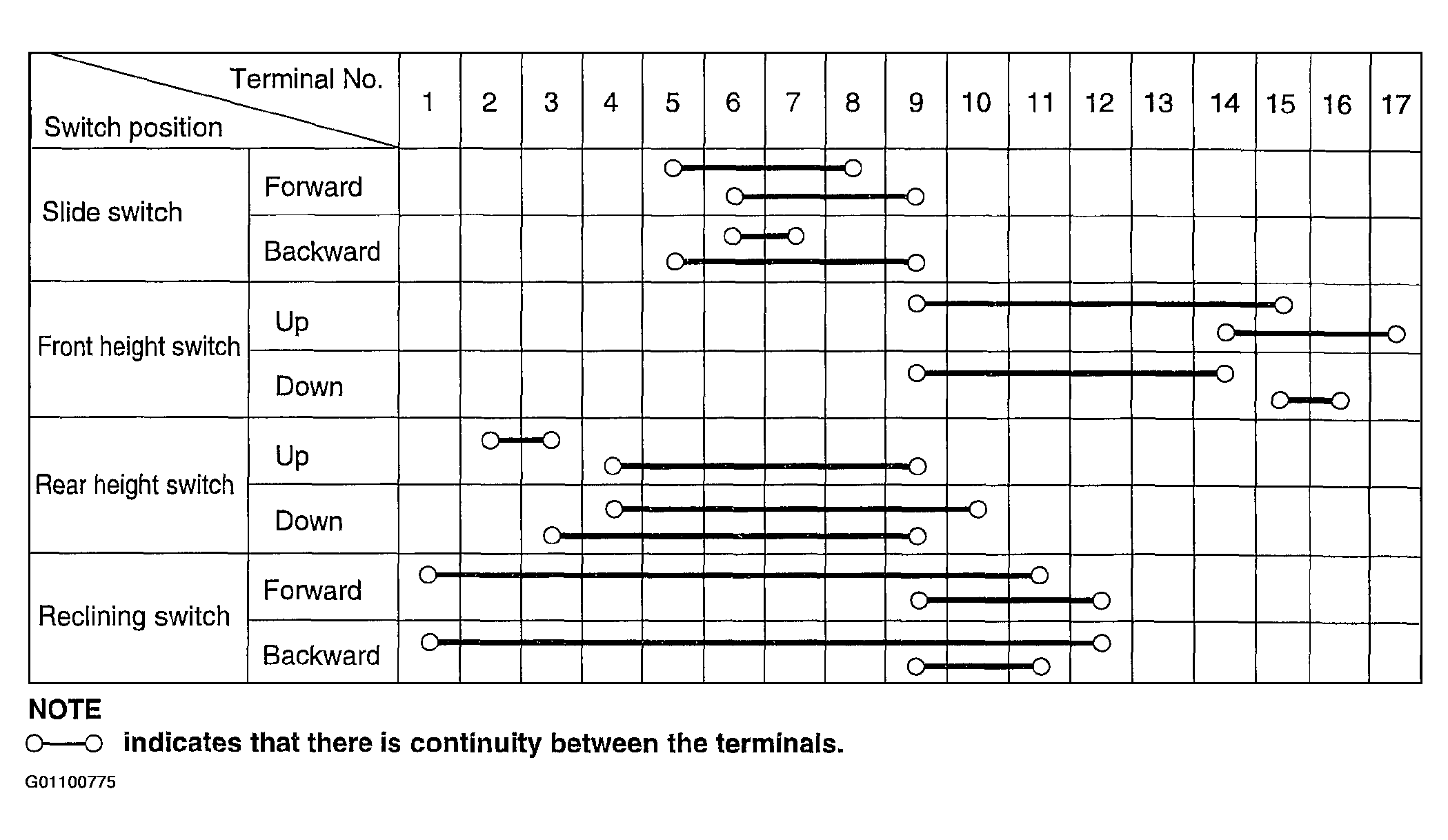

Fig 2: Checking Continuity Between Power Seat Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.
