Front Door: Component

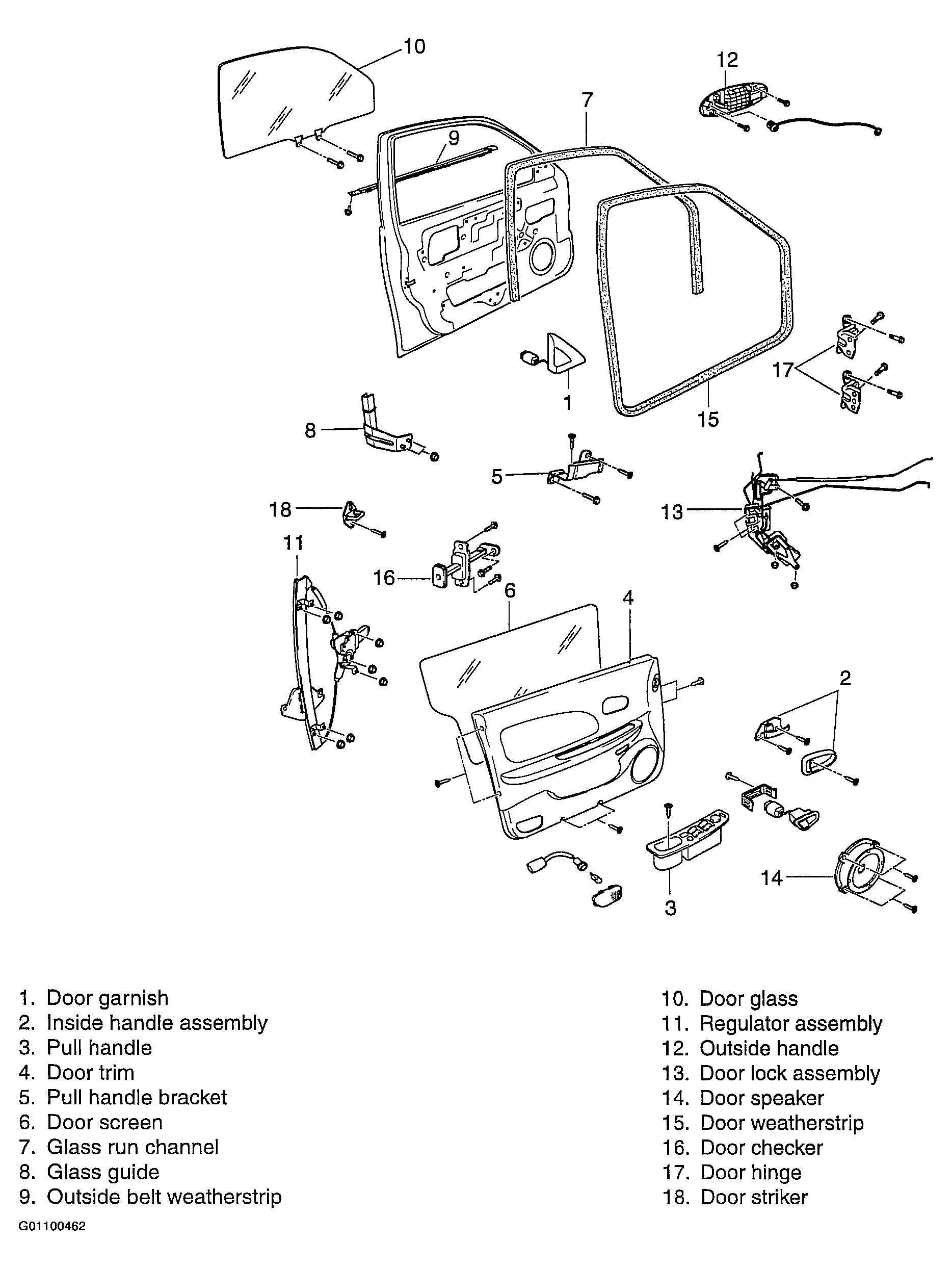

Fig 1: Identifying Front Door Components

G01100462

Courtesy of KIA MOTORS AMERICA, INC.
