Adjusting Differential Case Preload

Place 3 solders (length 0.3937in(10mm) approx. dia 10.1181in(3mm) on the torque converter housing as illustrated on the figure.

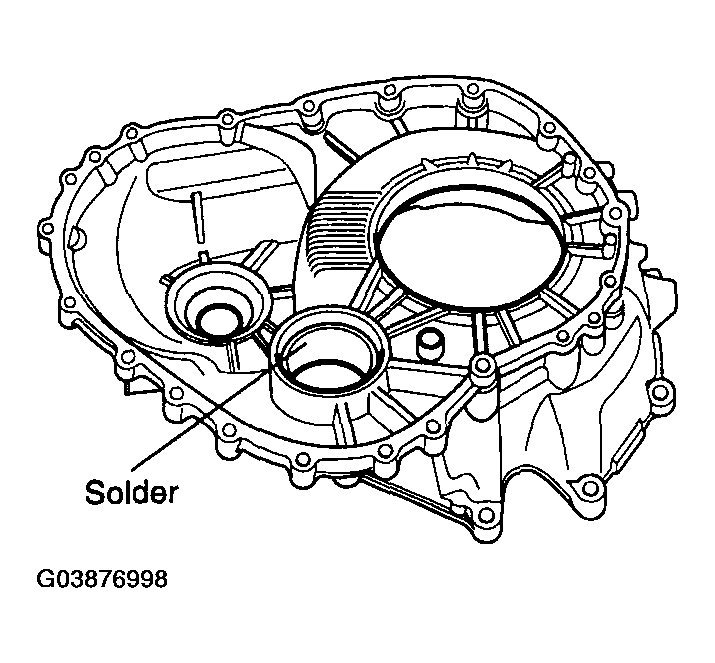

Fig 1: Adjusting Differential Case Preload

Courtesy of KIA MOTORS AMERICA, INC.

Assemble the torque converter housing on the transaxle case without applying sealant.

Tighten the connecting bolts with tightening torque. Release the bolts and remove the solders.

Measure solder's compressed thickness(T) using a micrometer. Use one within standard value.

Standard value

F5A51-2: 0.0177T-0.0041T (0.45T-0.105T mm)

Fig 2: Measuring Solder'S Compressed Thickness(T) Using A Micrometer
