Inspection Procedure 16

INHIBITOR SWITCH SYSTEM PROBABLE CAUSE CHART

Inhibitor switch system	Probable cause
The cause is probably a malfunction of the inhibitor switch circuit and the ignition circuit.	Malfunction of the inhibitor switch Malfunction of the connector Malfunction of the ignition switch Malfunction of the ECM

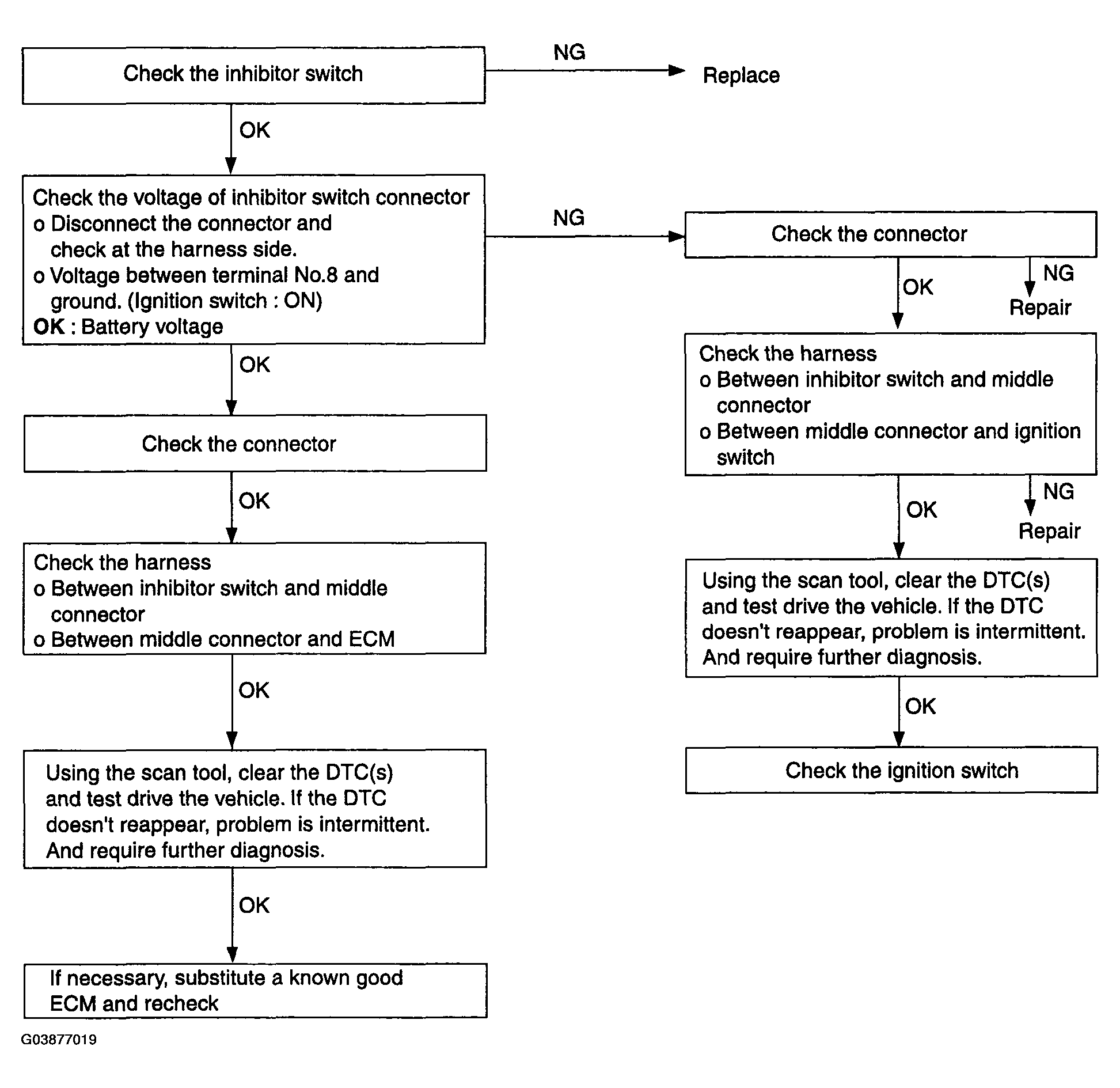

Fig 1: Inspecting Inhibitor Switch System Flow Chart

Courtesy of KIA MOTORS AMERICA, INC.
